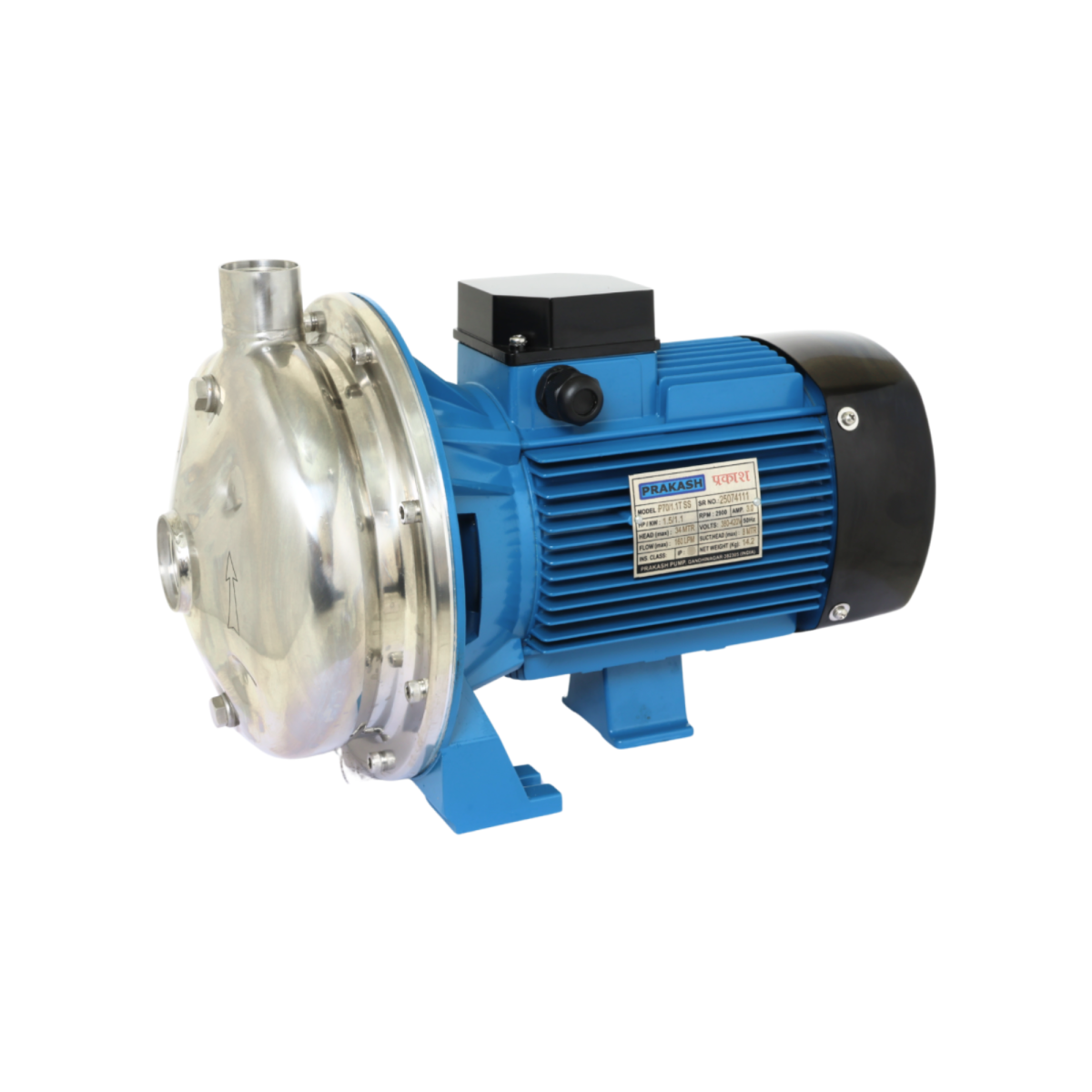

Prakash 1.5 HP Centrifugal Stainless Steel Pump P70/1.1T SS316
Frequency : 50Hz
Model : P70/1.1T SS316
SKU : P70/1.1T SS316
Flow :1 LPM - 160 LPM
Head : 13 Meter - 34 Meter
Applications:
Water supply systems
Pressure boiler feeding
Pure water treating systems
Pharmaceutical and food processing
Refining and chemical industries
Washing and sprinkling
RO Plants
Specifications :
Max Flow : 160 LPM
Max Head : 34 Meter
Power : 1.1 KW / 1.5 HP
Inlet /Outlet : 1.25″x1″
Speed : 2900 RPM
Voltage : 380-420V, 50Hz (Three Phase)
Max. Working Pressure : 8 Bar
Liquid Temperature : up to 90°C
Ambient Temperature : up to 40°C
Liquid pH : 4 - 10
Insulation Class : F
Protection Class : IPX4
Altitude : < 1000m
Features :
This series is suitable for transporting clean media which are non-aggressive to stainless steel 316.
Compact & nice appearance while being efficient and low noice.
Our pumps have reliable seal which results in case of maintenance & use.
Model | Power | Inlet /Outlet | Q | M3/H | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6.0 | 7.2 | 8.4 | 9.6 | |
KW | HP | LPM | 0 | 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | |||
P70/1.1T SS316 | 1.1 | 1.5 | 1.25”x1” | Head (meters) | 34 | 32 | 30 | 28 | 26 | 23 | 20 | 17 | 13 | |
