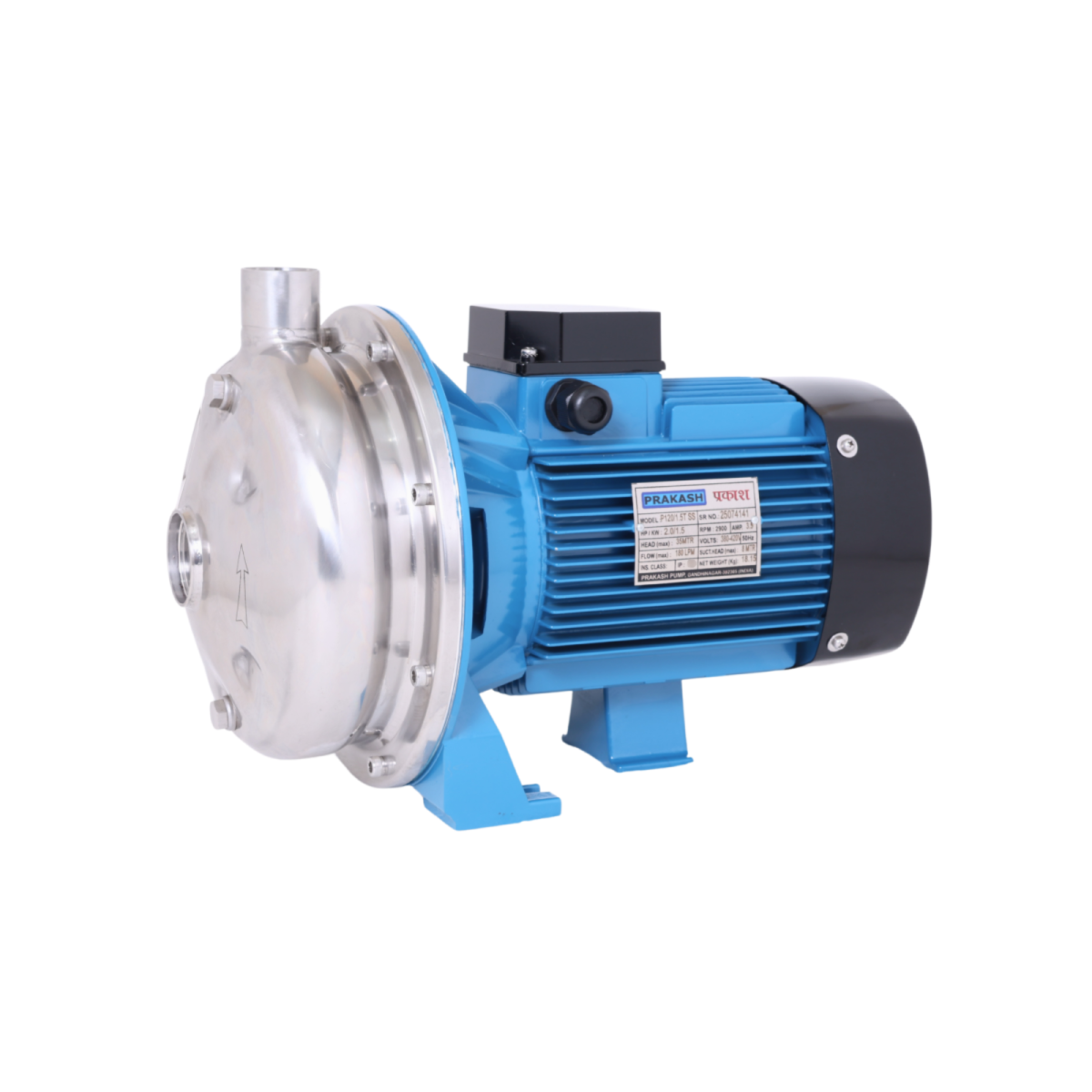

Prakash 2.0 HP Centrifugal Stainless Steel Pump P120/1.5T SS316
Frequency : 50Hz
Model : P120/1.5T SS316
SKU : P120/1.5T SS316
Flow :1 LPM - 180 LPM
Head : 20 Meter - 35 Meter
Applications:
Water supply systems
Pressure boiler feeding
Pure water treating systems
Pharmaceutical and food processing
Refining and chemical industries
Washing and sprinkling
RO Plants
Specifications :
Max Flow: 180 LPM
Max Head: 35 Meter
Power: 1.5 KW / 2.0 HP
Inlet /Outlet: 1.25″x1″
Speed: 2900 RPM
Voltage: 380-420V, 50Hz (Three Phase)
Max. Working Pressure: 8 Bar
Liquid Temperature: up to 90°C
Ambient Temperature: up to 40°C
Liquid pH: 4 - 10
Insulation Class: F
Protection Class: IPX4
Altitude : < 1000m
Features :
This series is suitable for transporting clean media that are non-aggressive to stainless steel 316.
Compact & nice appearance while being efficient and low noice.
Our pumps have a reliable seal, which results in the case of maintenance & use.
Model | Power | Inlet /Outlet | Q | M3/H | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6.0 | 7.2 | 8.4 | 9.6 | 10.8 | |
KW | HP | LPM | 0 | 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 | |||
P120/1.5T SS316 | 1.5 | 2.0 | 1.25”x1” | Head (meters) | 35 | 34 | 33 | 32 | 31 | 29 | 27 | 25 | 23 | 20 | |
