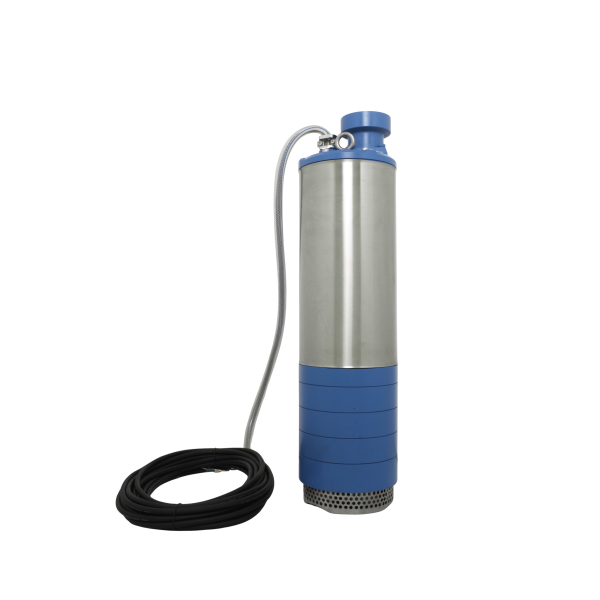

Prakash 5.5 HP Open Well Sub. Pump PQXNSP-5.5

  • Prakash 5.5 HP Open Well Sub. Pump PQXNSP-5.5
  • Prakash 5.5 HP Open Well Sub. Pump PQXNSP-5.5

Frequency : 50Hz

Model : PQXNSP-5.5

SKU : PQXNSP-5.5

Flow :1 LPM - 467 LPM

Head : 12 Meter - 73 Meter

Applications:
  • For water supply from open wells, tanks, or reservoirs.
  • For domestic use, Civil and industrial applications.
  • For garden and irrigation, the Utilization of rainwater

Specification:
  • Head: 73 Mtr
  • Flow: 467 LPM
  • Power: 4 KW / 5.5 HP
  • Insulation Class: B/F
  • Protection Class: IP 68
  • Cable length: 15m with a Float switch
  • Maximum Immersion depth: 20m
  • Water temperature up to 40°C
  • Power supply: 380-420V, Three Phase 50 Hz

     Model

    Power

    Outlet

    Q

    M3/H

    0

    5

    10

    15

      20 2528

    KW

    HP

    LPM

    0

    82

    167

    250

     333417467

    PQXNSP-5.5

    4.0

    5.5

    G3

    Head (meters)

    73

    70

    65

    56

      44  2612

Function and feature:
  • The hydraulic part under the motor and motor cooled by the pumped water for safe operation, also with the pump is only partially immersed.
  • An electric motor cooled by the pumped liquid for a long time.
