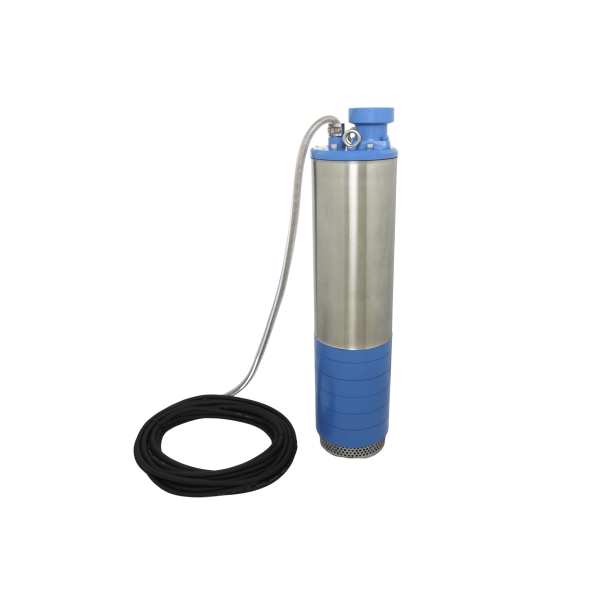

Prakash 7.5 HP Open Well Sub. Pump PQXNSP-7.5
Frequency : 50Hz
Model : PQXNSP-7.5
SKU : PQXNSP-7.5
Flow :1 LPM - 417 LPM
Head : 12 Meter - 94 Meter
Applications:
- For water supply from open wells, tanks, or reservoirs.
- For domestic use, Civil and industrial applications.
- For garden and irrigation, the Utilization of rainwater
- Head: 94 Mtr
- Flow: 467 LPM
- Power: 5.5 KW / 7.5 HP
- Insulation Class: B/F
- Protection Class: IP 68
- Cable length: 15m with a Float switch
- Maximum Immersion depth: 20m
- Water temperature up to 40°C
- Power supply: 380-420V, Three Phase 50 Hz
Model
Power
Outlet
Q
M3/H
0
5
10
15
20 25 28 KW
HP
LPM
0
82
167
250
333 417 467 PQXNSP-7.5
5.5
7.5
G3
Head (meters)
94
91
85
72
52 30 12
- The hydraulic part under the motor and motor cooled by the pumped water for safe operation, also with the pump is only partially immersed.
- An electric motor cooled by the pumped liquid for a long time.
