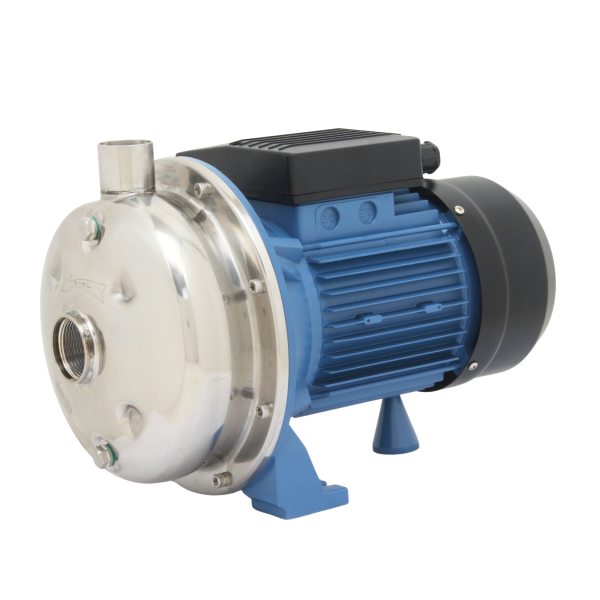

Model : P70/1.1

SKU : P70/1.1

Flow :1 LPM - 160 LPM

Head : 13 Meter - 34 Meter

Applications:

Water supply systems
Pressure boiler feeding
Pure water treating systems
Pharmaceutical and food processing
Refining and chemical industries
Washing and sprinkling
RO Plants

Specifications :

Max Flow : 160 LPM
Max Head : 34 Meter
Power : 1.1 KW / 1.5 HP
Inlet /Outlet : 1.25″x1″
Speed : 2900 RPM
Voltage : Single Phase Version : 220-240V, 50Hz
                    Three Phase Version : 380-420V, 50Hz
Max. Working Pressure : 8 Bar
Liquid Temperature : up to 80°C
Ambient Temperature range : up to 40°C
pH : 6.5 - 8
Insulation Class : F
Protection Class : IP55 or IP54
Altitude : < 1000m

Features :
This series is suitable for transporting clean media which are non-aggressive to stainless steel 316.
Compact & nice appearance while being efficient and low in voice.
Our pumps have reliable seal which results in case of maintenance & use.

Model	Power		Inlet /Outlet	Q	M3/H	0	1.2	2.4	3.6	4.8	6.0	7.2	8.4	9.6
	KW	HP			LPM	0	20	40	60	80	100	120	140	160
P70/1.1	1.1	1.5	1.25”x1”	Head (meters)		34	32	30	28	26	23	20	17	13
