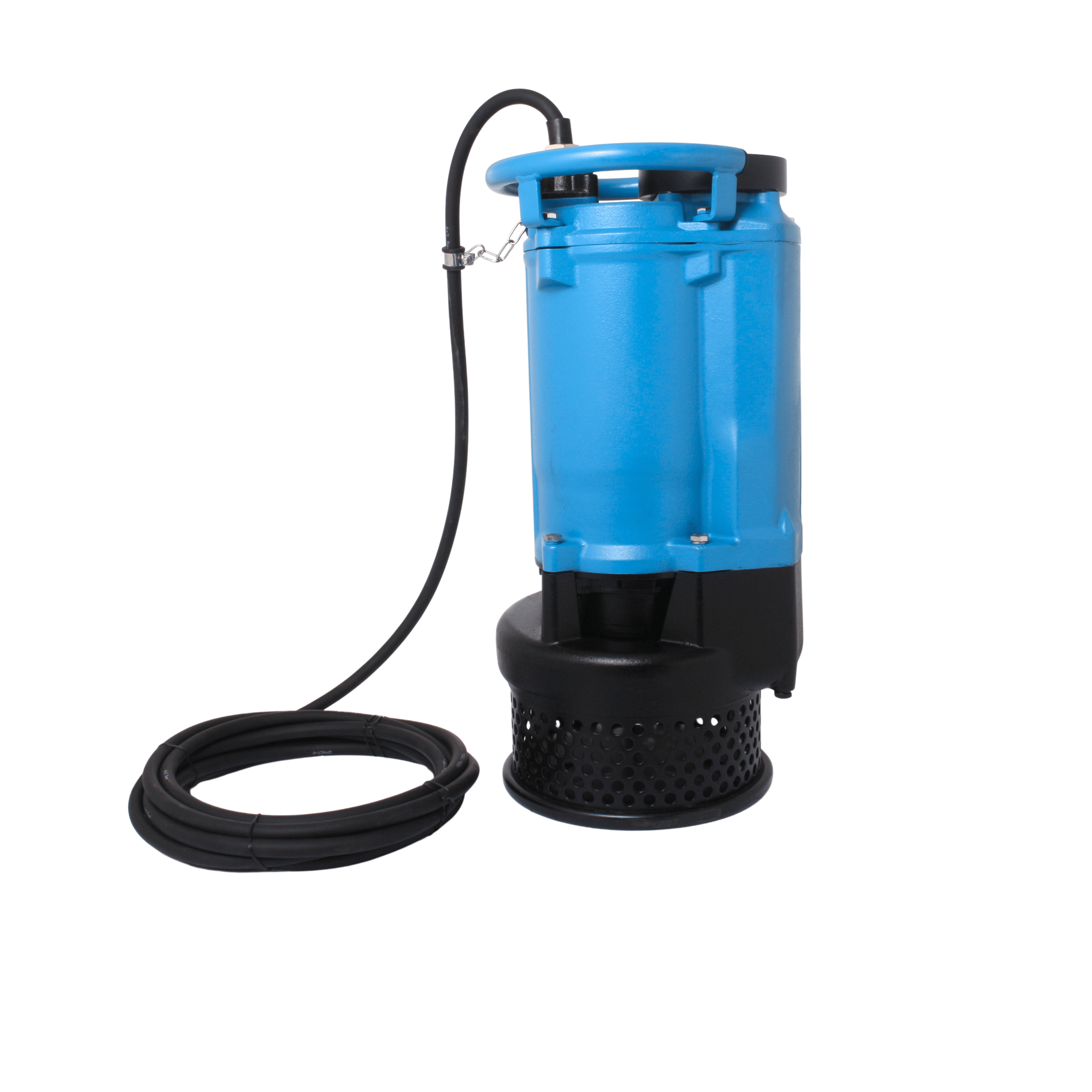

Model : PDP7.5-4

SKU : PDP7.5-4

Flow :1 M3/HR - 80 M3/HR

Head : 6 Meter - 40 Meter

Applications:

• Civil Engineering
• Mines, quarries, coal ore and slurries
• Sewage Treatment plants
• General pumping purposes

Specification:

• Water temperature : Up to 45°C
• Power Supply : Three phase 380-420V, 50Hz
• Power : 7.5Kw
• Insulation Class: F
• Protection Class : IP68
• Max Flow : 1334 LPM
• Max Head : 40m
• PH : 6.5 to 8.5
• Cable length : 8 m



Model	Power		Outlet	Q	M3/H	0	10	20	30	40	50	60	70	80
	KW	HP			LPM	0	167	333	500	667	834	1000	1167	1334
PDP7.5-4	7.5	10	4”	Head (meters)		40	38	36	33	30	26.5	22	16	6

Function, features and installation :

• Compact design, high performance and exceptional durability for handling abrasive liquid, widely used in general construction and civil engineering.
• The body of motor and pump is made of rigid cast iron or stainless steel for long-lasting durability.
• Greatly increased maximum submersion depth due to mechanical seal resistance to high pressure (0.5Mpa)
• Semi-open impeller made of high chrome alloy/ SS 304  match with wear plate (ductile iron) achieves superior durability.
• Effective motor cooling due to discharge channel cast iron as part of the motor housing. Space economy by a top outlet.
• Hermetically sealed motor equip build-in thermal protection. The protector in the motor can automatically cut off the power when it overheats or over current.
