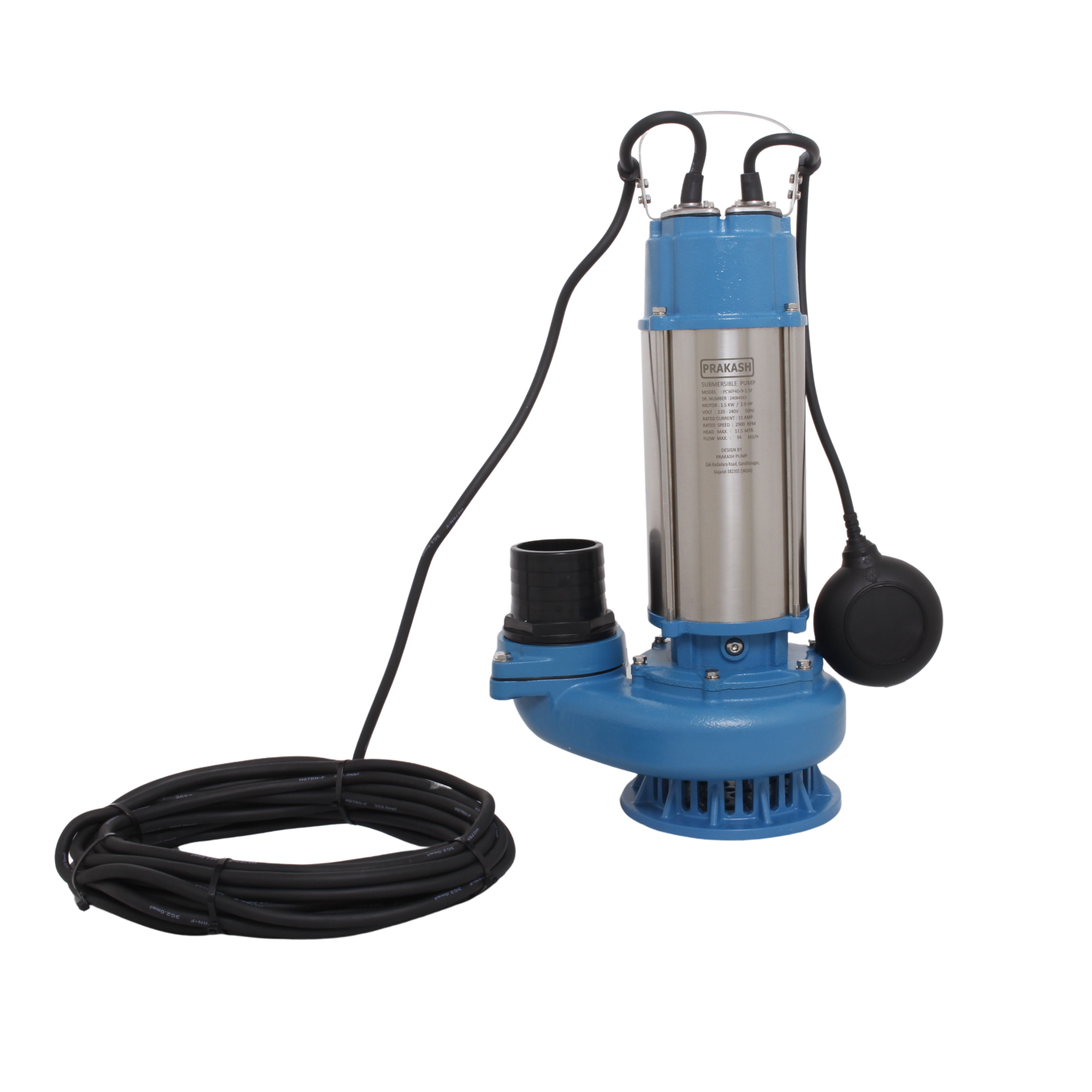

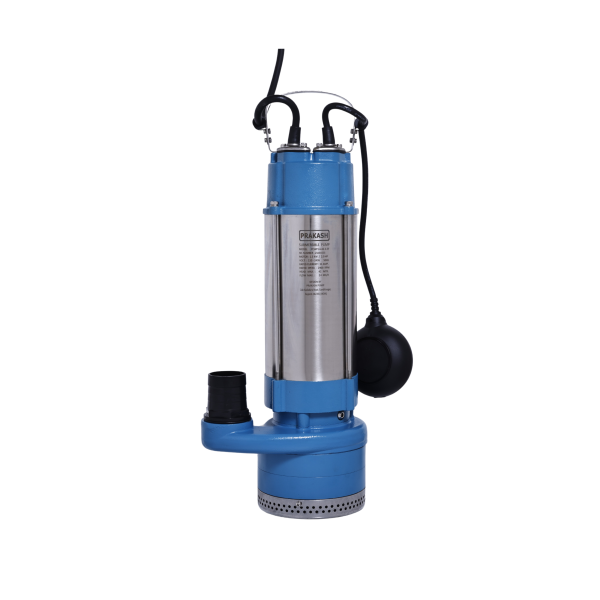

Prakash 2 HP Clean Water Pump - PCWP14-42-1.5F
Model : PCWP14-42-1.5F
SKU : PCWP14-42-1.5F
Flow :1 LPM - 234 LPM
Head : 6 Meter - 42 Meter
Application
- House hold water supply
- Garden watering
- Pressure boosting system
- Agriculture
- Irrigation
Feature and Benefits : Light weight, compact design for easy transport and positioning of pump. Built-in thermal protection prevent motor from overloading, overheating. Chrome plated shaft ensure high corrosion resistant and durability.
Installation and Use :This model of pump is characterized with high heads, compact size, light weight and convenient use and vastly used in high-position water delivery, flush and places as construction sites. The float switch can automatically control on and of with the change of the water level. The protector in the motor can automatically cut off the power when it overheat over current.
| Model | Power | Outlet | Q | M3/H | 0 | 1.5 | 3 | 4.5 | 6 | 7.5 | 9 | 10.5 | 12 | 13.5 | 14 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KW | HP | LPM | 0 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 225 | 234 | |||
| PCWP14-42-1.5F | 1.5 | 2 | 2" | Head (meters) | 42 | 40 | 38 | 36 | 34 | 31 | 27.5 | 22 | 16 | 9 | 6 | |
Specification:-
- Water temperature : up to 45°C
- Power Supply : Single Phase 220v±10%,50Hz
- Power : 1.5Kw
- Speed : 2900 RPM
- Insulation Class : F
- Protection Class: IP 68
- Max Flow(L/mint) : 234
- Max Head: 42m
- PH : 6.5-8.5
