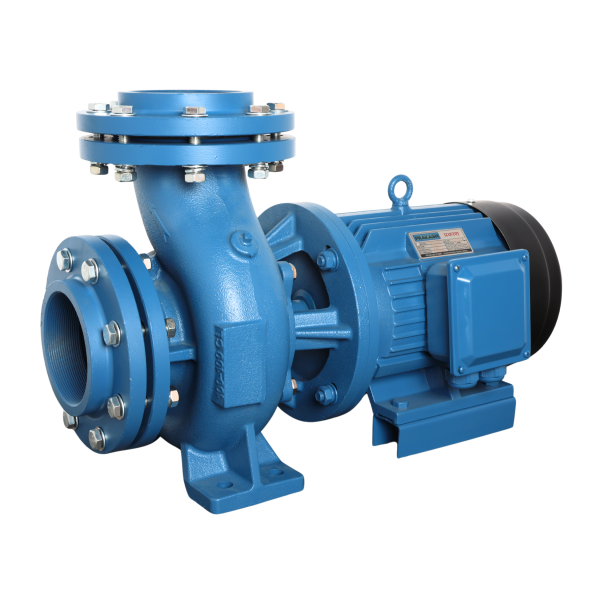

Prakash 5.5 HP Centrifugal Monoblock Pump PCM-5.5AA
Model : PCM-5.5AA
SKU : PCM-5.5AA
Flow :1 M3/HR - 110 M3/HR
Head : 6.6 Meter - 16 Meter
Applications:-
Agricultural, Industries
Irrigation of Fields/Farms
Hot and cold water circulation
Housing Complexes
Fire Fighting System
Community water supply
Specifications:-
- Max Flow: 1883 LPM
- Max Head: 16m
- Speed: 2900 RPM
- Power: 4 Kw
- Suction: Up to 8m
- Liquid Temperature between 0°C to 105°C
- Ambient Temperature Up to 40°C
- Max Working Pressure 10 Bar
- Voltage : 380-420V, 50Hz
Installation and Use:-
These pumps are ideal for pumping clean water and other chemically and mechanically non-aggressive liquids, and thanks to their Special design, which allows back pull-out of the motor and the rotary parts of the pump can be easily and conveniently used for a wide variety of applications in civil, agricultural, industrial, or general plant uses. Water supply, spray or flowing irrigation, autoclave feed, high-pressure system heating, conditioning, and any other service requiring transfer of clean liquids.
Model | Power | Inlet /Outlet | Q | M3/H | 0 | 10 | 20 | 40 | 60 | 80 | 110 | |
KW | HP | LPM | 0 | 167 | 333 | 667 | 1000 | 1334 | 1883 | |||
PCM-5.5AA | 4 | 5.5 | 4”x4” | Head (meters) | 16 | 15.5 | 15 | 14.3 | 13.2 | 11.3 | 6.6 | |
