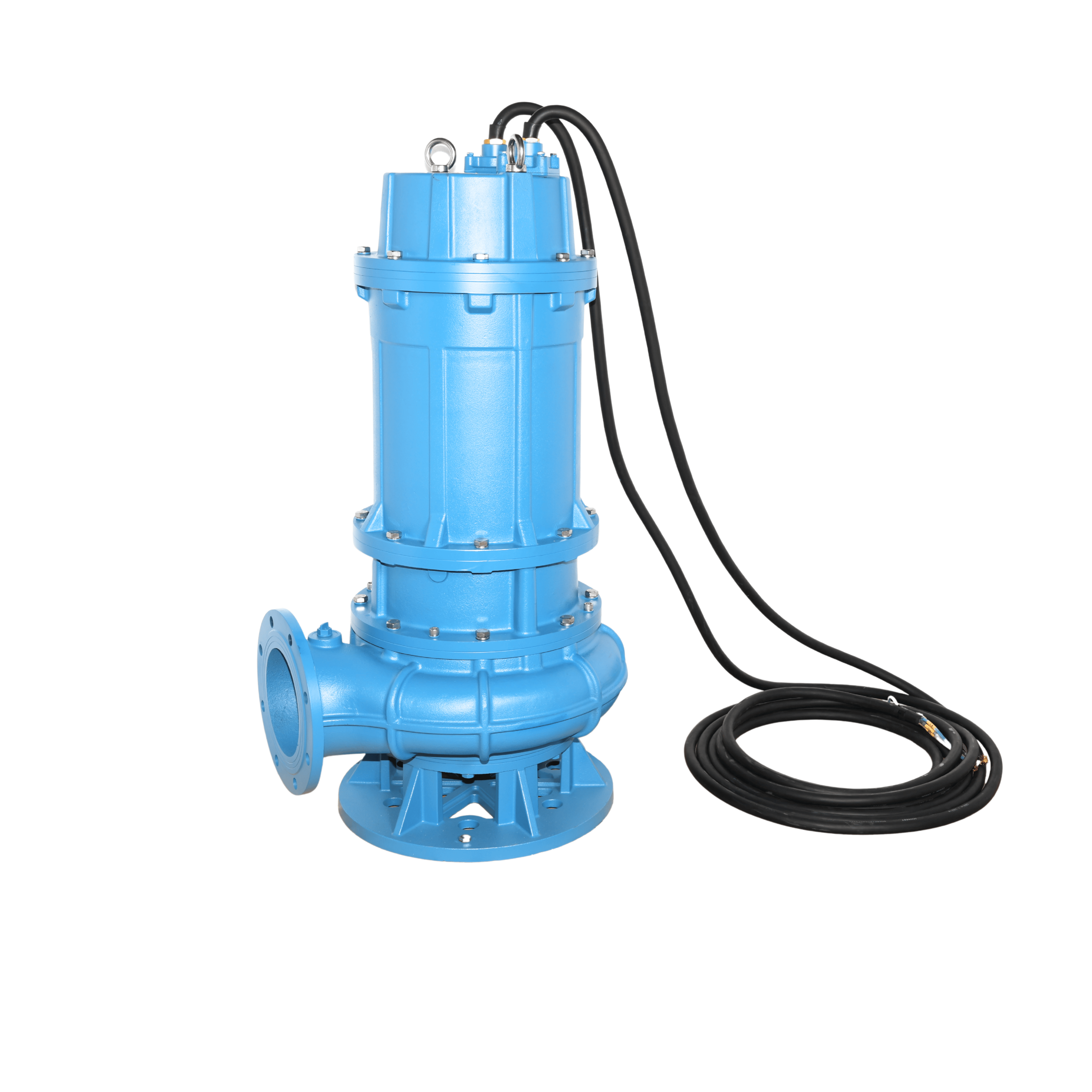

Model : PSP300-30-45

SKU : PSP300-30-45

Flow :1 M3/HR - 660 M3/HR

Head : 6 Meter - 43 Meter

Application:

Municipal Projects
Industrial and Residential buildings
Mining
Civil Engineering
Pumping Sewage from domestic, hotel,  school and public buildings

Specifications :

Max Flow : 10996 LPM
Max Head : 43 Meter
Power : 45 KW / 60 HP
Speed : 1450 RPM
Water temperature : Up to 40˚C
pH : 6.5 - 8.5
Ambient temperature : up to 40˚C
Insulation Class : F
Protection Class : IP 68
Duty : S1
Voltage : 380-420V, 50Hz

Feature & Benefits :
Non-clogging double vane impeller can pump large solid cove full range of head.
Chrome plated shaft ensure high corrosion resistant and wear resistance.
Designed for pumping sewage, waste water, rainwater and living water containing solid grains, various fabric, sludge and solid.

Installation and Use :

This model of pump is characterized with high heads, compact size, light weight and convenient use and vastly used in high-position water delivery, flush and places as construction sites. The float switch can automatically control on and off with the change of the water level. The protection in the motor can automatically cut off the power when it overheats or over current.

Model	Power		Outlet	Q	M3/H	0	100	200	250	300	350	400	450	500	550	600	660
	KW	HP			LPM	0	1666	3332	4165	4998	5831	6664	7497	8330	9163	9996	10996
PSP300-30-45	45	60	8”	Head (meters)		43	38	33.5	31	29.5	27.5	25	22.5	19	15	11	6
