DESCRIPTION :

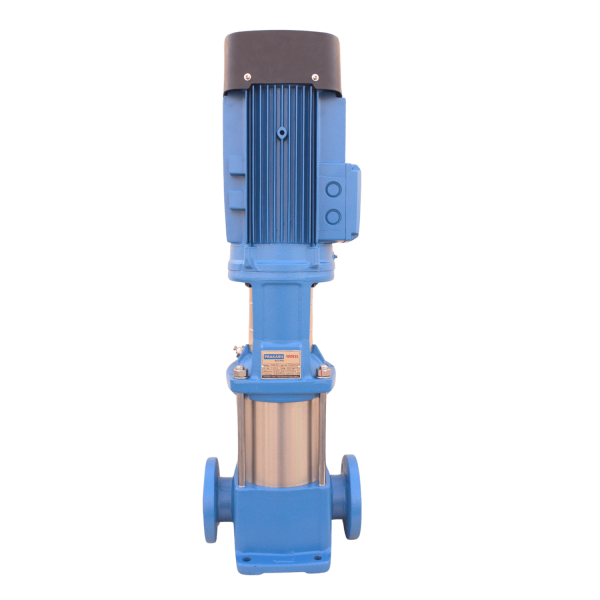

Stainless steel vertical multistage centrifugal pumps for high pressure water supply system, which are compact in size and maintain constant pressure.
APPLICATIONS :
This series are suitable for transferring liquids of low viscosity, non-inflammable and non-Explosive, not containing solid particles or fibers.
- Water supply: Water supply and drainage for high-rise buildings. filtration and transfer at waterworks, pressure boosting in main pipe
- Industry: Washing and cleaning systems, boiler feeding, cooling water circulation, water treatment systems, auxiliary systems, support equipment’s.
- Water treatment: ultra-filtration systems, reverse-osmosis systems, distillation systems, separators, swimming pools.
- Agricultural irrigation: sprinkler irrigation, drip-feed irrigation
- Food and beverage industry
- Fire-fighting systems
FEATURES:
Compact, nice appearance, efficient, low noise, reliable seal, easy to use and Maintain.
OPERATING CONDITIONS:
Low viscosity non-inflammable and non-explosive liquids not containing solid particles or fibers. The liquids must not chemically attack the pump materials. When pumping liquids with a density is higher than that of water, a motor with a higher output power rating shall be used.
SPECIFICATION :
- Models : PVMP64--1-1 To PVMP64-8-1
- Max Flow (M³/H) : 85
- Max Head : 222m
- Motor power : 4Kw-45Kw (5.5HP - 60HP)
- Voltage : 380-420V, 50 Hz
- Inlet/Outlet : 4" x 4"
- Max pump efficiency : 80%
- Liquid temperature : -20˚C To +120°C
- pH : 4-10
- Altitude : up to 1000m
- For more information download the catalog.
