Applications:

The Peripheral & Centrifugal (PCP Series) Pressure Booster & Transfer Pump Sets are engineered to provide reliable water supply, pressure boosting, and water transfer for residential, commercial, and light-duty applications. The systems are suitable for handling clean water and other non-aggressive liquids compatible with the pump construction materials.
Typical applications include:

• Domestic Water Supply & Pressure Boosting: Villas, residential buildings, housing complexes, and general domestic water supply systems.
• Commercial Buildings: Shopping centers, offices, retail facilities, and other commercial water supply applications.
• Tank-to-Tank Water Transfer: Automatic water transfer from underground storage tanks to roof-top or elevated water tanks.
• Irrigation & Landscaping: Lawn, garden, landscape, sprinkler, and general irrigation systems.
• Automobile Washing: Water supply and pressure boosting for vehicle washing and cleaning facilities.
• Auxiliary Water Systems: Small air-conditioning systems and compatible auxiliary water circulation applications.
• General Water Services: Water distribution, transfer, and pressurization for various light-duty applications.
• Duty/Standby Systems: Applications requiring standby pump availability, improved operational reliability, and continuity of water supply.

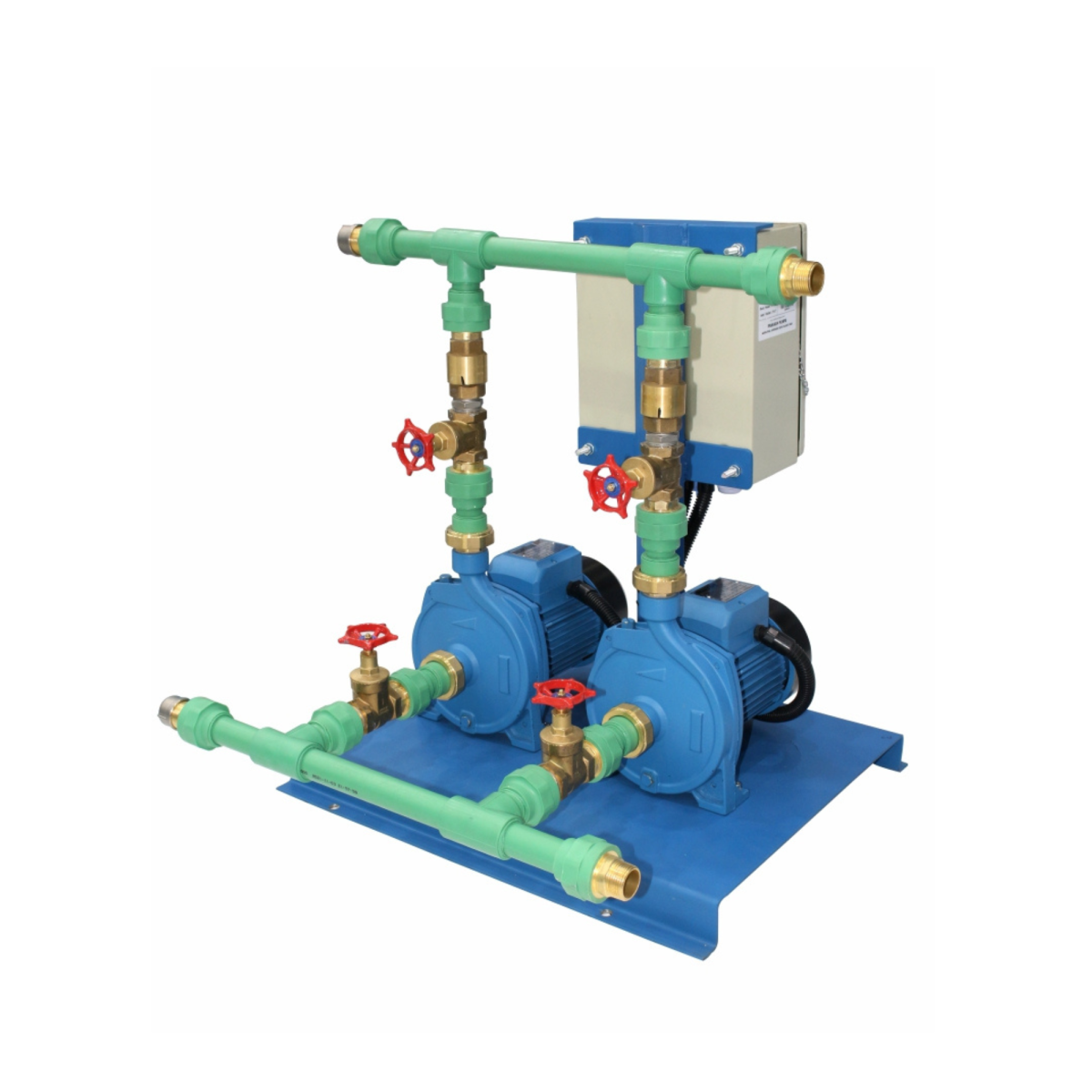

System Description:

The Pressure Booster System is a fully integrated pumping package engineered to provide reliable water supply and maintain stable system pressure under varying demand conditions. The system automatically controls pump operation according to water demand, providing efficient performance, balanced pump operation and dependable water supply.
For transfer applications, the system provides automatic water transfer between storage tanks based on water-level requirements.
Duty/standby configurations provide operational redundancy, with automatic standby pump operation in the event of duty pump failure.
The system is available in various duty/standby and assist configurations and can be customized to meet specific project and client requirements.

Specifications :
Model : PCP05 To PCP2-50
Power range : 0.37 kW - 4.0 kW / 0.5 HP - 5.5 HP
Max Flow : Up to 1200 LPM
Max Head : Up to 78 m
Standard Inlet/Outlet range : 1", 1.25", 1.5", 2", 3"
Rated Speed : 2900 rpm
Frequency : 50Hz
Insulation class :  F
Protection class : IPX4
Voltage : Single phase 220-240V, 50Hz
                       Three phase 380-420V, 50Hz
Liquid Temperature : Up to 90°c
Liquid pH value : 6-8
Altitute: < 1000m

Special Features:

•  Feature availability - depends on the selected booster/transfer system configuration and control philosophy.
• Fully Integrated Package – Factory-assembled pumping system supplied as a complete, ready-to-install package.
• Automatic Duty/Standby Operation – Standby pump automatically takes over in case of duty pump failure.
• Automatic Pump Alternation – Equalizes operating hours between pumps for balanced utilization and extended service life.
• Constant Pressure Control – Maintains stable system pressure according to varying water demand.
• Automatic Assist Pump Operation – Additional pump starts automatically when system demand exceeds the capacity of the duty pump.
• Dry-Run Protection by Float Switch – Protects pumps against operation without sufficient water supply.
• Comprehensive Motor Protection – Protection against overload, short circuit, phase failure and other electrical abnormalities.
• Low & High-Pressure Protection – Provides enhanced system safety under abnormal operating conditions.
• Automatic Level Control – Enables automatic pump start/stop according to tank water levels.
• User-Friendly Control Panel – Provides clear operating status, alarms and manual/automatic control.
• Reliable Standby Backup – Helps maintain continuous water supply in the event of duty pump failure.
• Compact Skid-Mounted Design – Minimizes installation space and simplifies site installation.
• Easy Installation & Maintenance – Pre-engineered arrangement reduces site piping, wiring and commissioning requirements.
• Energy-Efficient Operation – Optimized pump sequencing minimizes unnecessary pump operation.
• Flexible Configuration – Available in 1 Duty + 1 Standby, 2 Duty + 1 Standby, 3 Duty + 1 Standby and customized configurations.
• Optional VFD/PLC Control – Advanced control options are available to suit project and client requirements.

  Note :  For detailed performance & table curves, please refer to the “Prakash Peripheral and Centrifugal Pump Catalogue”.

                • 1 Duty + 1 Assistant/Standby Pump
                • 2 Duty + 1 Standby Pump
                • 3 Duty + 1 Standby Pump

Customized Configurations: Other pump configurations are available upon request and can be engineered to meet specific client requirements, system operating conditions, and project specifications.
