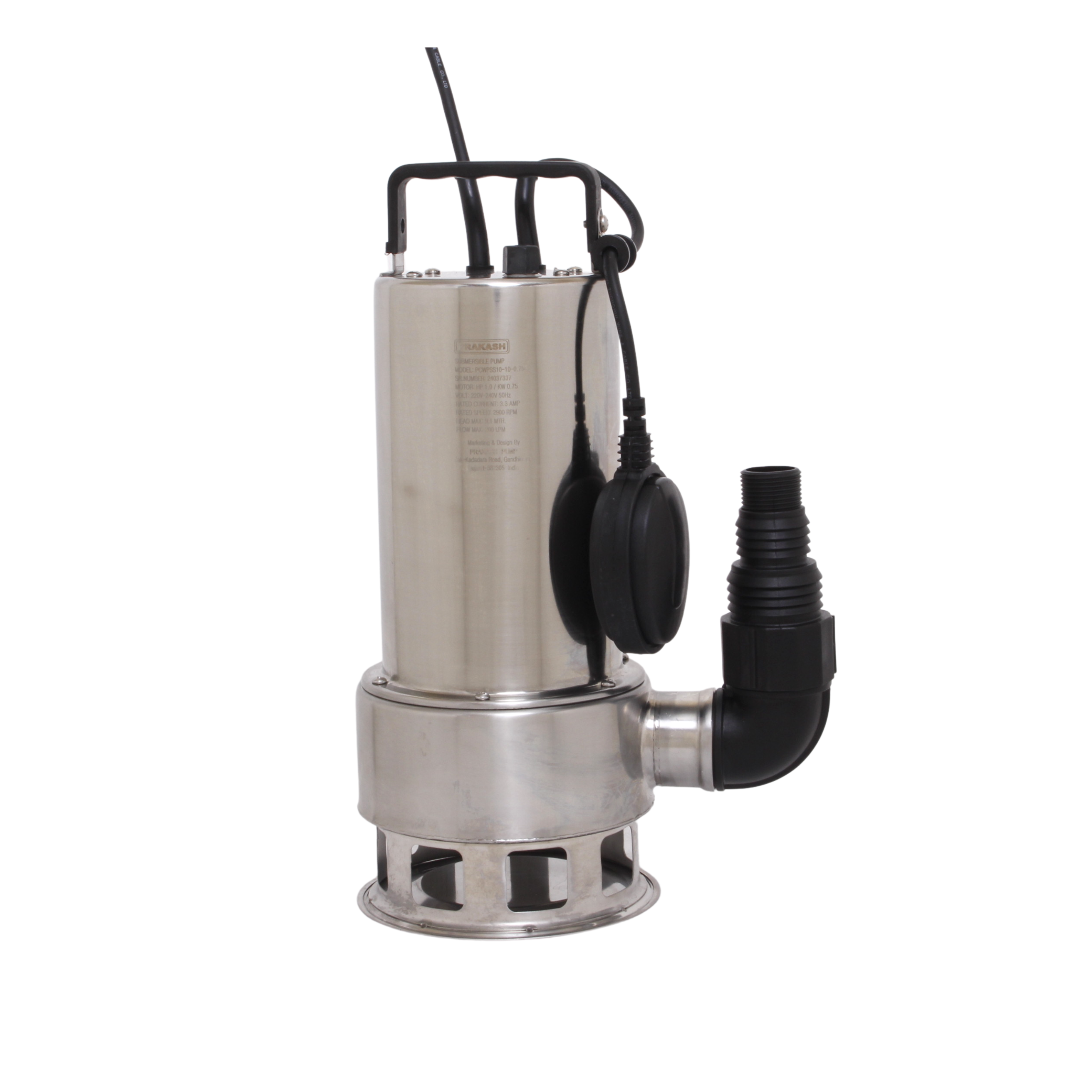

Model : PCWPSS10-10-0.75F

SKU : PCWPSS10-10-0.75F

Flow :1 LPM - 200 LPM

Head : 2 Meter - 9.1 Meter

Application :

• House hold water supply
• Garden watering
• Pressure boosting system
• Agriculture
• Irrigation



Function and feature :

Light weight, compact design for easy transport and positioning of pump.
Built-in thermal protection prevent motor from overloading, overheating.
Chrome plated shaft ensure high corrosion resistant and durability.

Installation and Use :

This model of pump is characterized with high heads, compact size, light weight and convenient use and vastly used in high-position water delivery, flush and places as construction sites. The float switch can automatically control on and of with the change of the water level. The protector in the motor can automatically cut off the power when it overheat over current.

Model	Power		Outlet	Q	M3/H	0	1.2	2.4	3.6	4.8	6	7.5	8.4	9.6	10.8	12
	KW	HP			LPM	0	20	40	60	80	100	125	140	160	180	200
PCWPSS10-10-0.75F	0.75	1	1.5”	Head (meters)		9.1	8.8	8.4	8	7.5	6.8	6	5	4	3	2

Specification :

• Water temperature : up to 45°C
• Power Supply : Single Phase 220v±10%,50Hz
• Power : 0.75Kw
• Insulation Class : F
• Protection Class: IP 68
• Max Flow(LPM) : 200
• Head: up to 9.1m
• PH : 6.5 to 8.5
