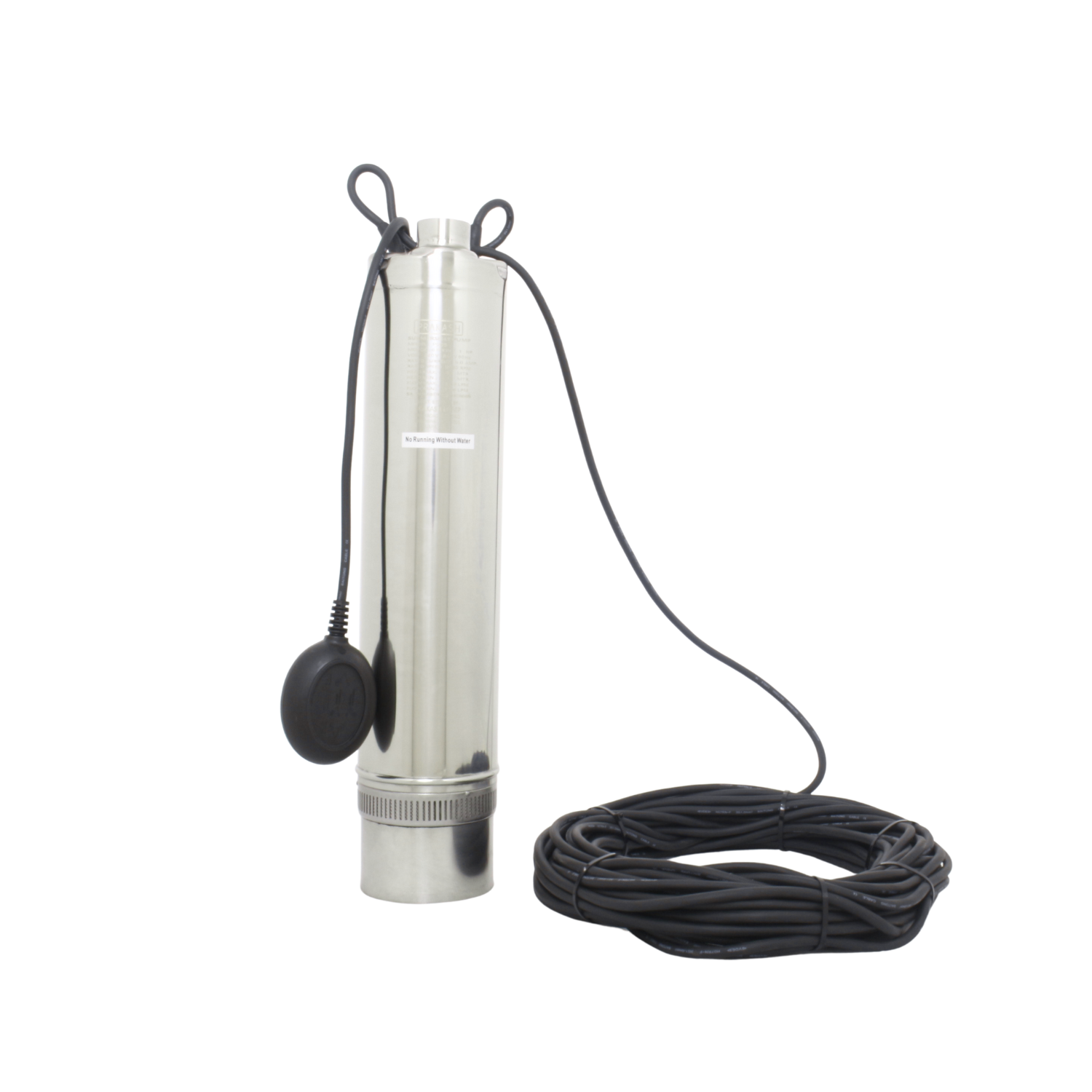

Model : P205

SKU : P205

Flow :1 LPM - 83.2 LPM

Head : 19 Meter - 53 Meter

Applications:

• For water supply from open wells, tanks or reservoirs.
• For domestic use, Civil and industrial applications.
• For garden and irrigation, Utilization of rain water.



Specification:

• Power : 0.75 KW / 1 HP
• Max Head : 53 M
• Max Flow : 83.2 LPM
• Outlet : 1.25"
• Water temperature : up to 35°C
• Minimum internal diameter of well: Ø132mm.
• Insulation Class : F
• Protection Class : IP 68
• Power Supply : single phase 220-240V, 50Hz




  Function and feature:

  • Single phase with built-in capacitor and thermal protector on control box required Three phase with built-in thermal protector.
  • Hermetically sealed motor equip build-in thermal protection. The protector in the motor can automatically cut off the power when it overheats or over current.
  • Close coupled multi-stage submersible pump in chrome –nickel stainless steel.
  • Hydraulic part under the motor and motor cooled by the pumped water for safe operation also with the pump only partially immersed.
  • Double shaft seal with interposed oil chamber.



    Model	Power		Outlet	Q	M3/H	0	1	1.5	2	2.5	3	3.5	4	4.5
    	KW	HP			LPM	0	17	25	33	42	50	58	67	75
    P205	0.75	1	1.25"	Head (meters)		53	49.5	47	44	40	35	30	25	19
