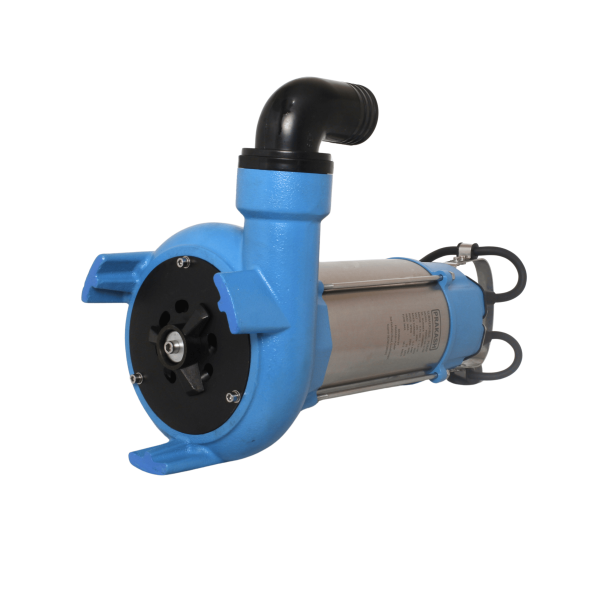

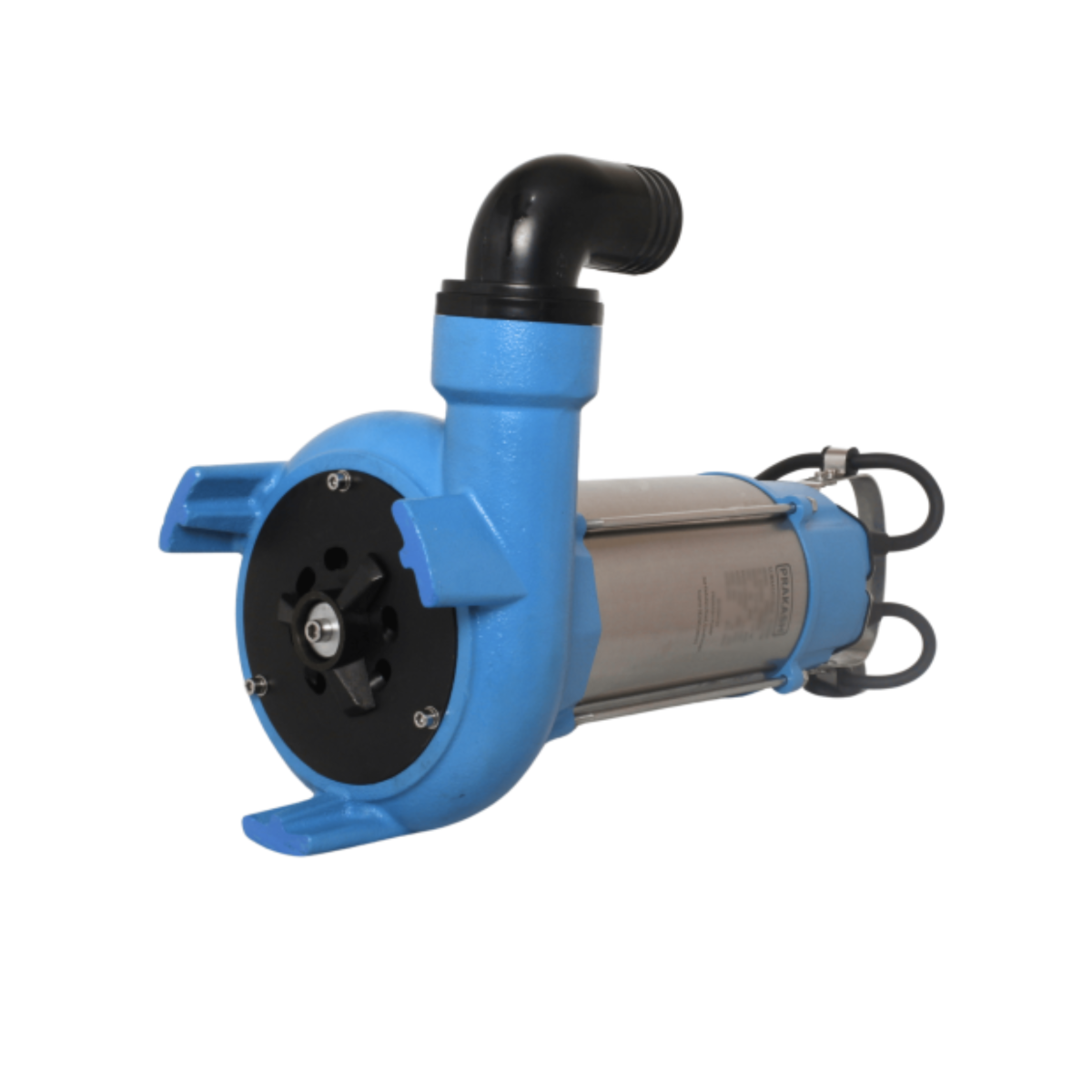

Prakash 1.0 HP Sewage Cutter Pump PSCP10-16-0.75F
Frequency : 60Hz
Model : PSCP10-16-0.75F
SKU : PSCP10-16-0.75F
Flow :0 LPM - 275 LPM
Head : 2.5 Meter - 10 Meter
Application:
- Scum pumping at the wastewater treatment plant
- Municipal projects
- Industrial packaged pump station
- Home and domestic application (Special for the kitchen)
- Pumping agricultural manure (dairy, hog, and poultry)
- Max Flow: 275 LPM
- Max Head: 10 m
- Speed: 3450 rpm
- Power: 0.75 kW / 1.0 HP
- Outlet: 2"
- Max Liquid Temperature: Up to 40°C
- Max Ambient Temperature Up to 40°C
- Insulation Class: F
- Protection class: IPX8 / IP68
- pH: 4-10
Pump Selection Chart :
|
|
|
| Output | Max Flow | Max Head (m) |
|
|
|
| 2" |
|
|
Pump Performance Chart :
| Power |
|
| M3/H | 0 | 1.5 | 4.5 | 7.5 | 10.5 | 13.5 | 15.0 | 16.5 | |
KW | HP | LPM | 0 | 25 | 75 | 125 | 175 | 225 | 250 | 275 | |||
PSCP10-16-0.75F/T | 0.75 | 1.0 | 2” | Head (meters) | 10 | 9.9 | 9.0 | 8.0 | 6.9 | 5.2 | 4.0 | 2.5 | |
