Application :

• Scum pumping at the wastewater treatment plant
• Municipal projects
• Industrial packaged pump station
• Home and domestic application (Special for the kitchen)
• Pumping agricultural manure (dairy, hog, and poultry)

Specification :

• Max Flow: 275 LPM
• Max Head: 10 Meter
• Power: 0.75 KW
• Speed: 2900 RPM
• Water temperature: Up to 40˚C
• Power supply: Single phase 220-240V, 50Hz
• pH: 4 to 10
• Duty: S1



Features :

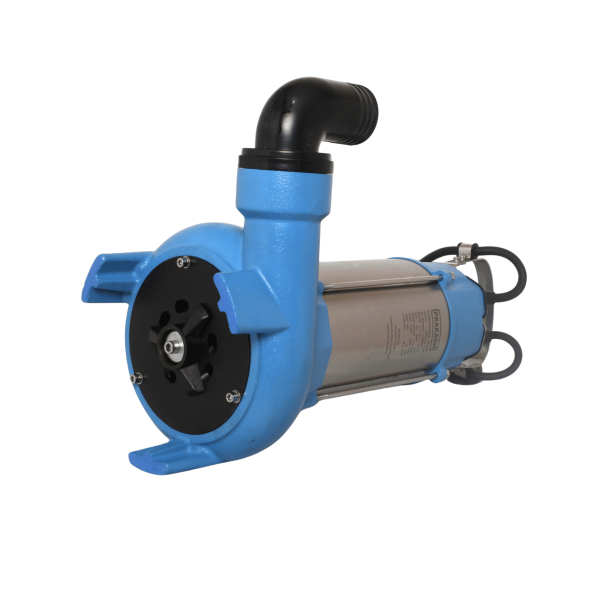

The sewage cutter pump is designed to handle a large concentration of solids and/or tougher solids that conventional sewage pumps cannot handle. It provides clog-free operation by macerating those solids that might clog other types of submersible pumps.

Installation and use :

A submersible pump with a cutter is an ideal machine for draining sewage. A high-speed rotating cutter is assembled at the inlet hole of the pump, making it easy to cut off long-fiber and firm sundries contained in the sewage, so as to avoid the impeller being blocked by the entanglement. The protector in the motor can automatically cut off the power when it overheats or is overloaded, thus guaranteeing the security and reliability of the pump’s running even in an atrocious environment.
