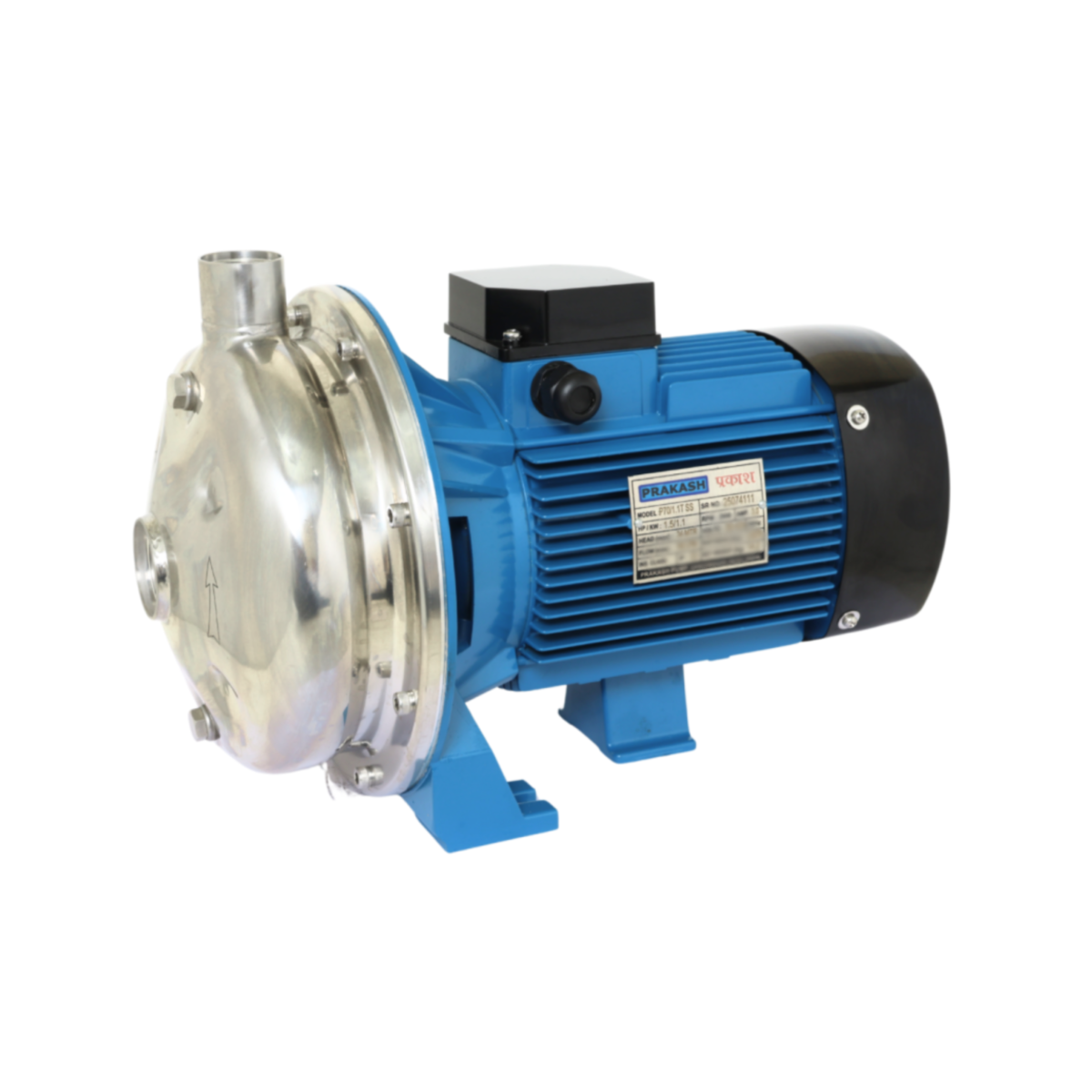

Prakash 1.5 HP Centrifugal Stainless Steel Pump P70/1.1T SS316
Frequency : 60Hz
Model : P70/1.1T SS316
SKU : P70/1.1T SS316
Flow :0 LPM - 160 LPM
Head : 13 Meter - 34 Meter
Applications:
Water supply systems
Pressure boiler feeding
Pure water treating systems
Pharmaceutical and food processing
Refining and chemical industries
Washing and sprinkling
RO Plants
Specifications :
Max Flow: 160 LPM
Max Head: 34 meters
Power: 1.1 kW / 1.5 HP
Inlet / Outlet: 1.25″x1″
Speed: 3500 RPM
Voltage: 380-420V, 60hz
Max Suction: Up to 8m
Max. Working Pressure: 8 Bar
Liquid Temperature: up to 90°C
Ambient Temperature range: up to 40°C
Liquid pH Value: 4 - 10
Insulation Class: F
Protection Class: IPX4
Altitude : < 1000m
Features :
This series is suitable for transporting clean media that are non-aggressive to stainless steel 316.
Compact & nice appearance while being efficient and low in voice.
Our pumps have a reliable seal, which results in the case of maintenance & use.
Pump Performance Chart :
| Power |
|
| M3/H | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6.0 | 7.2 | 9.6 | |
KW | HP | LPM | 0 | 20 | 40 | 60 | 80 | 100 | 120 | 160 | |||
P70/1.1T SS316 |
|
|
|
|
|
|
|
|
|
|
| 13 | |
