• For water supply from open wells, tanks, or reservoirs.
• For domestic use, Civil and industrial applications.
• For garden and irrigation, the Utilization of rainwater



• Head: 80 Mtr
• Flow: 83.2 LPM
• Power: 1.1 KW / 1.5 HP
• Outlet: 1.25"
• Insulation Class: F
• Protection Class: IP 68
• Maximum Immersion depth: up to 20m
• Water temperature up to 40°C
• Minimum Internal diameter of well: 132mm
• pH: 6-8
• Power supply: 220-240V, Single Phase, 60 Hz



• Three-phase with built-in thermal protector.
• Sealed motor equipment has built-in thermal protection. The protector in the motor can automatically cut off the power when it overheats or overcurrent.

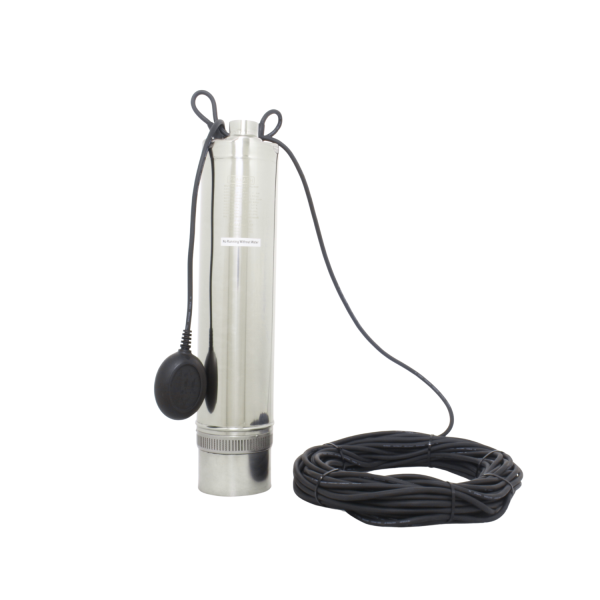

• Close-coupled multi-stage submersible pump in chrome–nickel stainless steel.
• The hydraulic part under the motor is cooled by the pumped water for safe operation, and the pump is only partially immersed.
• Double shaft seal with an interposed oil chamber.
• The suction strainer prevents the entrance of solids with a diameter bigger than 2 mm.



  Model	Power		Q	M3/H	0	1	1.5	2	3	3.5	4.5	5
  	KW	HP		LPM	0	17	25	33	50	58	75	83.2
  P205	1.1	1.5	Head (m)		80	75	71	67	57	50	33	24
