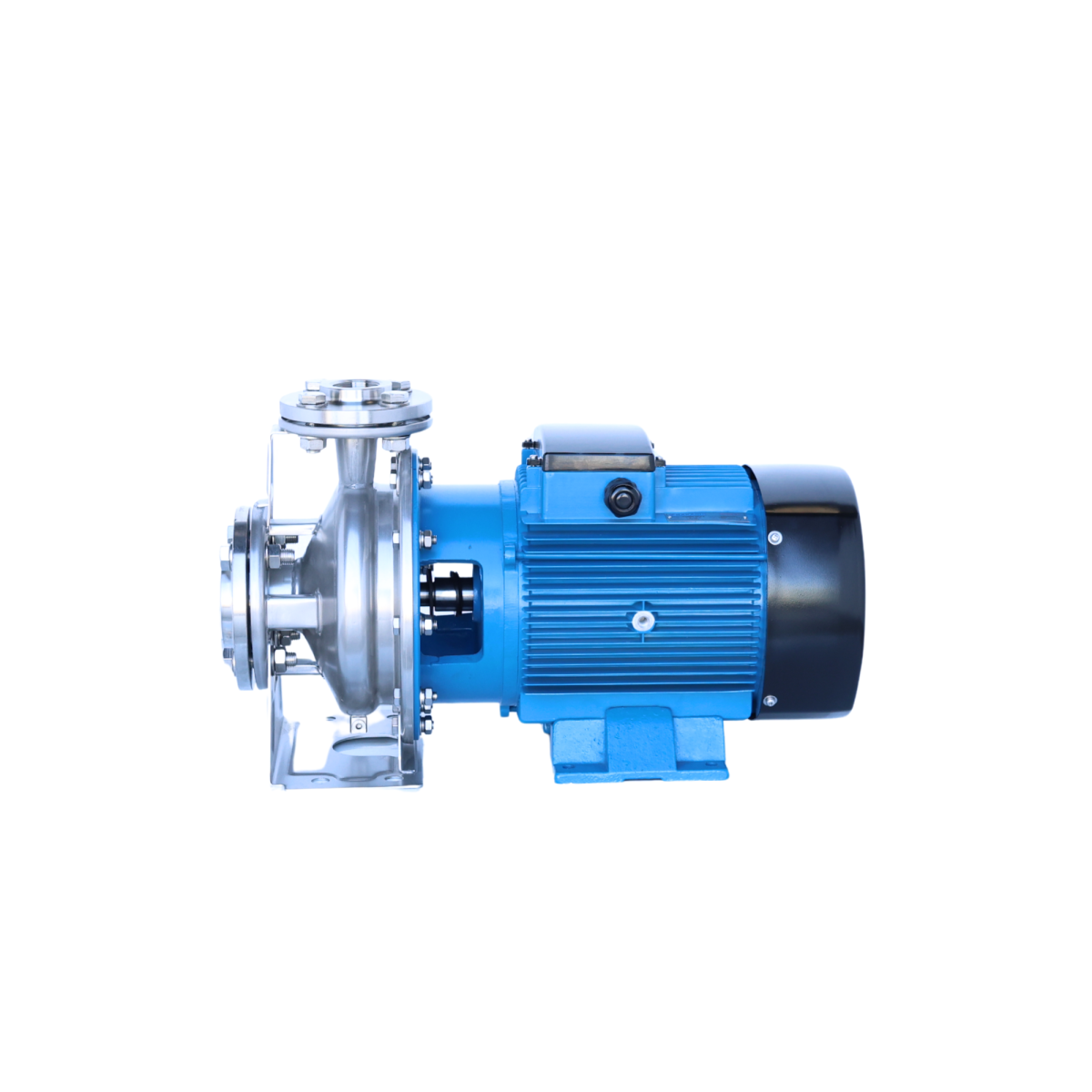

Prakash 10 HP Centrifugal Monoblock SS Pump PCM80-65-10

  • Prakash 10 HP Centrifugal Monoblock SS Pump PCM80-65-10

Frequency : 60Hz

Model : PCM80-65-10

SKU : PCM80-65-10

Flow :0 LPM - 1200 LPM

Head : 24 Meter - 39 Meter

Application:

  • Pressure boiler feeding
  • Pure water treating system
  • Refining chemical industries
  • Hot and cold water circulation
  • Washing & sprinkling
  • Water supply system


Specification:
  • Max Flow: 1200 LPM
  • Max Head: 39 m
  • Speed: 3500 rpm
  • Power: 7.5 kW / 10 HP
  • Inlet/Outlet: 3"x2.5"
  • Max Liquid Temperature: Up to 90°C
  • Max Ambient Temperature Up to 40°C
  • Insulation Class: F
  • Protection class: IPX4 / IP54
  • pH: 4-10


Pump Selection Chart :


                     Model


       Volt
    (60Hz)


  Phase


  RPM


     Inlet/Outlet

  Max     Flow
(LPM)

  Max   Head     (m)

   Max Suction
   (m)


          PCM80-65-10


380-420


      3


 3500


       3"x2.5”


  1200


    39


      3



Pump Performance Chart :



 Model

Power


Inlet/Outlet


Q

M3/H

0

24

27

30

 36

   48   60   72

KW

HP

LPM

0

400

450

500

 600

 800 1000 1200

 PCM80-65-10

 7.5

10

3"x2.5”

Head (meters)

39

36

35

 34.5

34

 32.5    29   24
