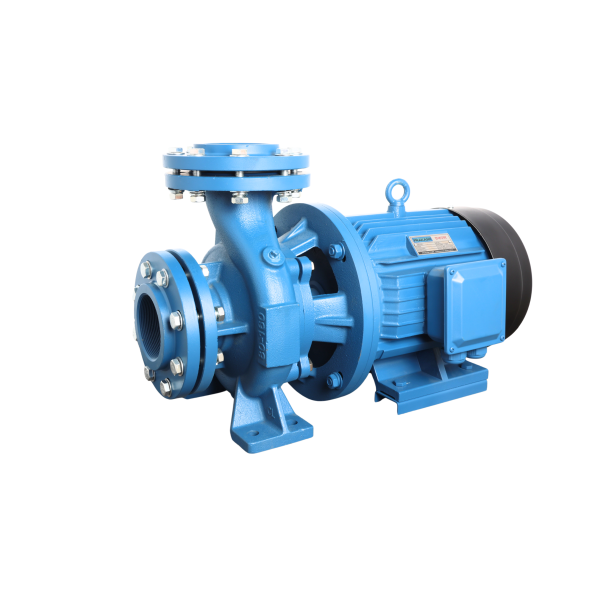

Prakash 10 HP Centrifugal Monoblock Pump PCM-10
Model : PCM-10
SKU : PCM-10
Flow :1 M3/HR - 90 M3/HR
Head : 2 Meter - 32 Meter
Applications:-
Agricultural, Industries
Irrigation of Fields/Farms
Hot and cold water circulation
Housing Complexes
Fire Fighting System
Community water supply
Specifications:-
- Max Flow: 1500 LPM
- Max Head: 32m
- Speed: 2900 RPM
- Power: 7.5Kw
- Suction: Up to 8m
- Liquid Temperature between 0°C to 105°C
- Ambient Temperature Up to 40°C
- Max Working Pressure 10 Bar
- Voltage : 380-420V, 50Hz
Installation and Use:-
These pumps are ideal for pumping clean water and other chemically and mechanically non-aggressive liquids, and thanks to their Special design, which allows back pull-out of the motor, the rotary parts of the pump can be easily and conveniently used for a wide variety of applications in civil, agricultural, industrial, or general plant uses. Water supply, spray or flowing irrigation, autoclave feed, high-pressure system heating, conditioning, and any other service requiring transfer of clean liquids.
Model
Power
In/Out
Q
M3h
0
10
20
30
40
50
60
70
80
90
kW
Hp
LPM
0
167
333
500
667
834
1000
1167
1334
1500
PCM-10
7.5
10
3”x3”
Head(m)
32
31.5
31
30
29
27
24
20
15
2
