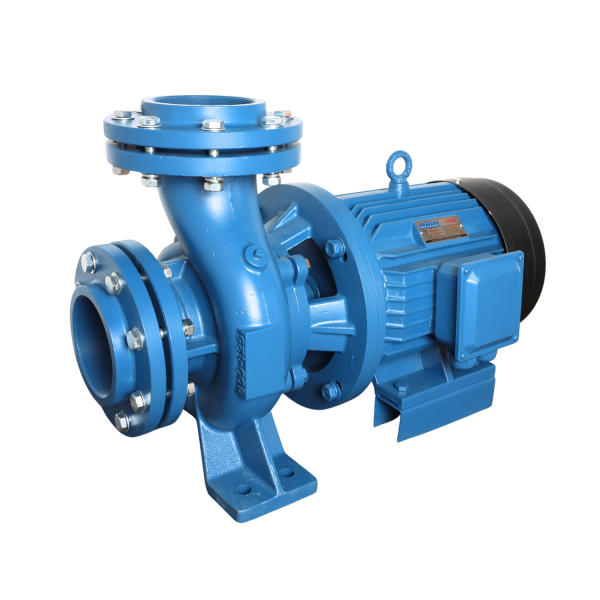

Prakash 10 HP Centrifugal Monoblock Pump PCM-10AA
Model : PCM-10AA
SKU : PCM-10AA
Flow :1 M3/HR - 145 M3/HR
Head : 5 Meter - 22 Meter
Applications:-
Agricultural, Industries
Irrigation of Fields/Farms
Hot and cold water circulation
Housing Complexes
Fire Fighting System
Community water supply
Specifications:-
- Max Flow: 2333 LPM
- Max Head: 22m
- Speed: 2900 RPM
- Power: 7.5 Kw
- Suction: Up to 8m
- Liquid Temperature between 0°C to 105°C
- Ambient Temperature Up to 40°C
- Max Working Pressure 10 Bar
- Voltage : 380-420V, 50Hz
Installation and Use:-
These pumps are ideal for pumping clean water and other chemically and mechanically non-aggressive liquids, and thanks to their Special design, which allows back pull-out of the motor and the rotary parts of the pump can be easily and conveniently used for a wide variety of applications in civil, agricultural, industrial, or general plant uses. Water supply, spray or flowing irrigation, autoclave feed, high-pressure system heating, conditioning, and any other service requiring transfer of clean liquids.
|
Model |
Power |
In/Out |
Q |
M3h |
0 |
10 |
20 |
40 |
60 |
80 |
110 |
140 |
|
|
kW |
Hp |
LPM |
0 |
167 |
333 |
667 |
1000 |
1334 |
1883 |
2333 |
|||
|
PCM-10AA |
7.5 |
10 |
4”x4” |
Head(m) |
22 |
21.5 |
21 |
20.5 |
20 |
18 |
13 |
5 |
|
