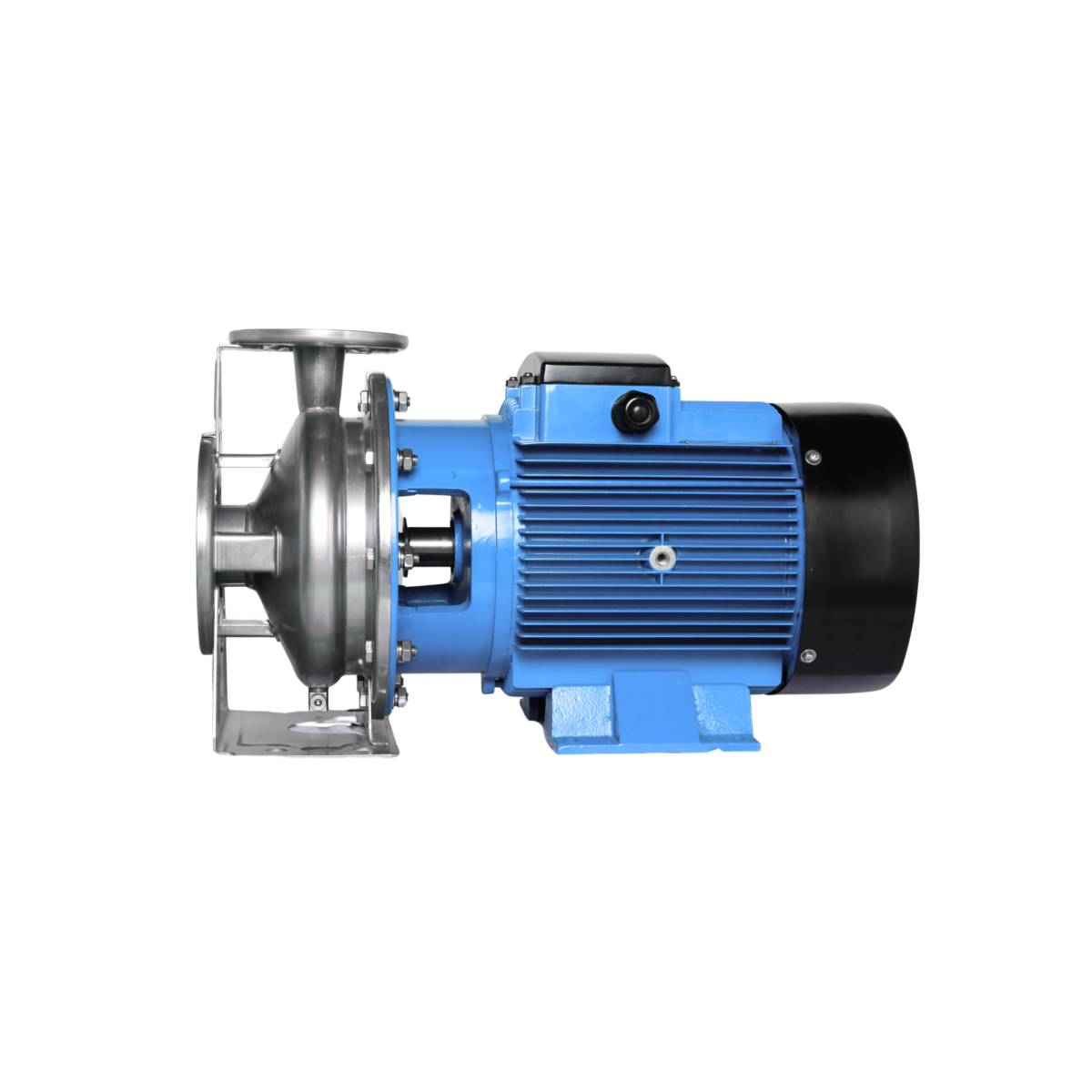

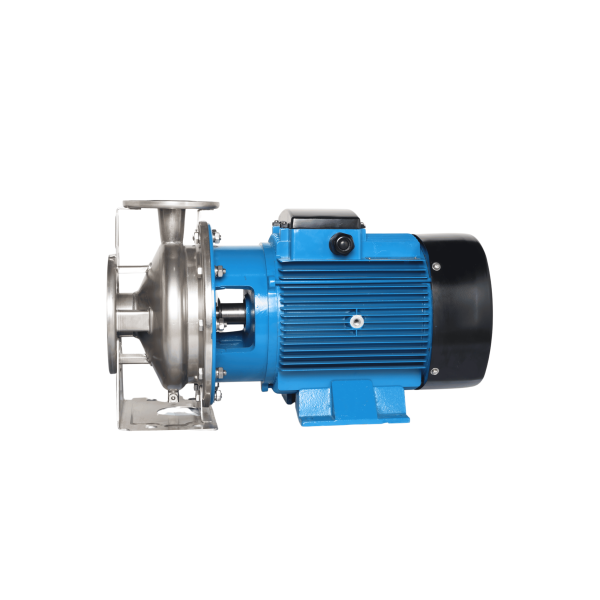

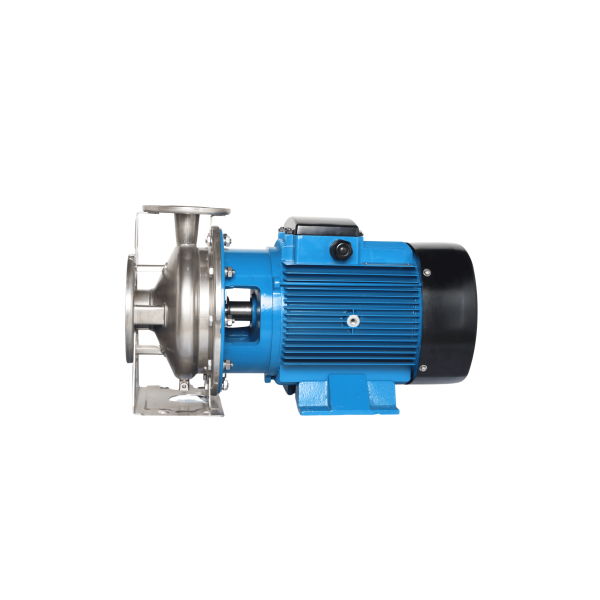

Prakash 10 HP Centrifugal Monoblock SS Pump PCM65-40-10

Frequency : 50Hz

Model : PCM65-40-10

SKU : PCM65-40-10

Flow :0 LPM - 700 LPM

Head : 44.5 Meter - 57 Meter

Application:

Pressure boiler feeding
Pure water treating system
Refining chemical industries
Hot and cold water circulation
Washing & sprinkling
Water supply system

Specification:

Max Flow: 700 LPM
Max Head: 57 m
Speed: 2900 rpm
Power: 7.5 kW / 10 HP
Inlet/Outlet: 2"x1.25"
Max Liquid Temperature: Up to 80°C
Max Ambient Temperature Up to 40°C
Insulation Class: F
Protection class: IP55
pH: 4-10

Pump Selection Chart :

Model

Volt
(60Hz)

Phase

RPM

Inlet/Outlet

Max Flow
(LPM)

Max Head (m)

Max Suction
(m)

PCM65-40-10

380-420

3

2900

2"x1.25”

700

57

3

Pump Performance Chart :

Model	Power		Inlet/Outlet	Q	M3/H	0	3	6	9	12	15	18	20	22	24	28	32	36	42
Model	KW	HP	Inlet/Outlet	Q	LPM	0	50	100	150	200	250	300	333	367	400	466	533	600	700
PCM65-40-10	7.5	10	2"x1.25”	Head (meters)		57	55.5	54	53.5	53	52.5	52.5	52	51	50	49	47	46.5	44.5
