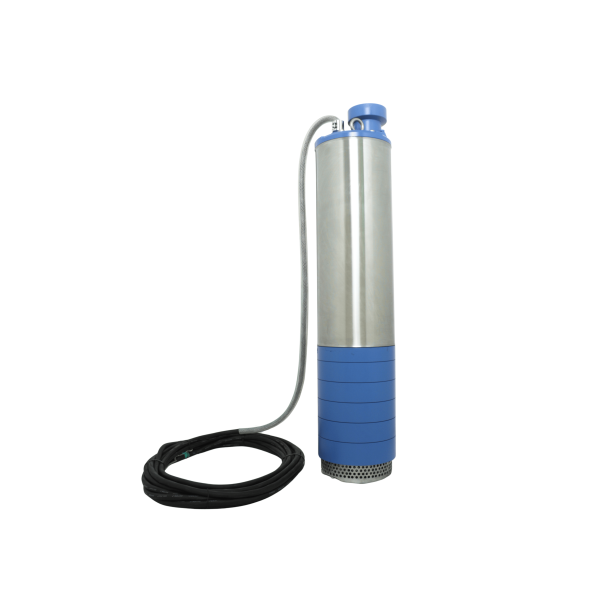

Prakash 10 HP Open Well Sub. Pump PQXNSP-10
Frequency : 50Hz
Model : PQXNSP-10
SKU : PQXNSP-10
Flow :1 LPM - 550 LPM
Head : 6 Meter - 101 Meter
Applications:
- For water supply from open wells, tanks, or reservoirs.
- For domestic use, Civil and industrial applications.
- For garden and irrigation, the Utilization of rainwater
- Head: 101 Mtr
- Flow: 550 LPM
- Power: 7.5 KW / 10 HP
- Insulation Class: B/F
- Protection Class: IP 68
- Cable length: 15m with a Float switch
- Maximum Immersion depth: 20m
- Water temperature up to 40°C
- Power supply: 380-420V, Three Phase 50 Hz
Model
Power
Outlet
Q
M3/H
0
5
10
15
20 25 30 33 KW
HP
LPM
0
82
167
250
333 417 500 550 PQXNSP-10
7.5
10
G3
Head (meters)
101
100
96
87
70 45 20 6
- The hydraulic part under the motor and motor cooled by the pumped water for safe operation, also with the pump is only partially immersed.
- An electric motor cooled by the pumped liquid for a long time.
