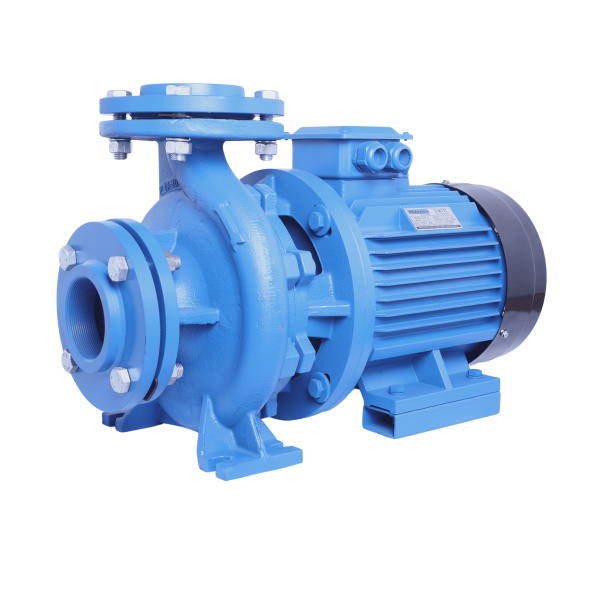

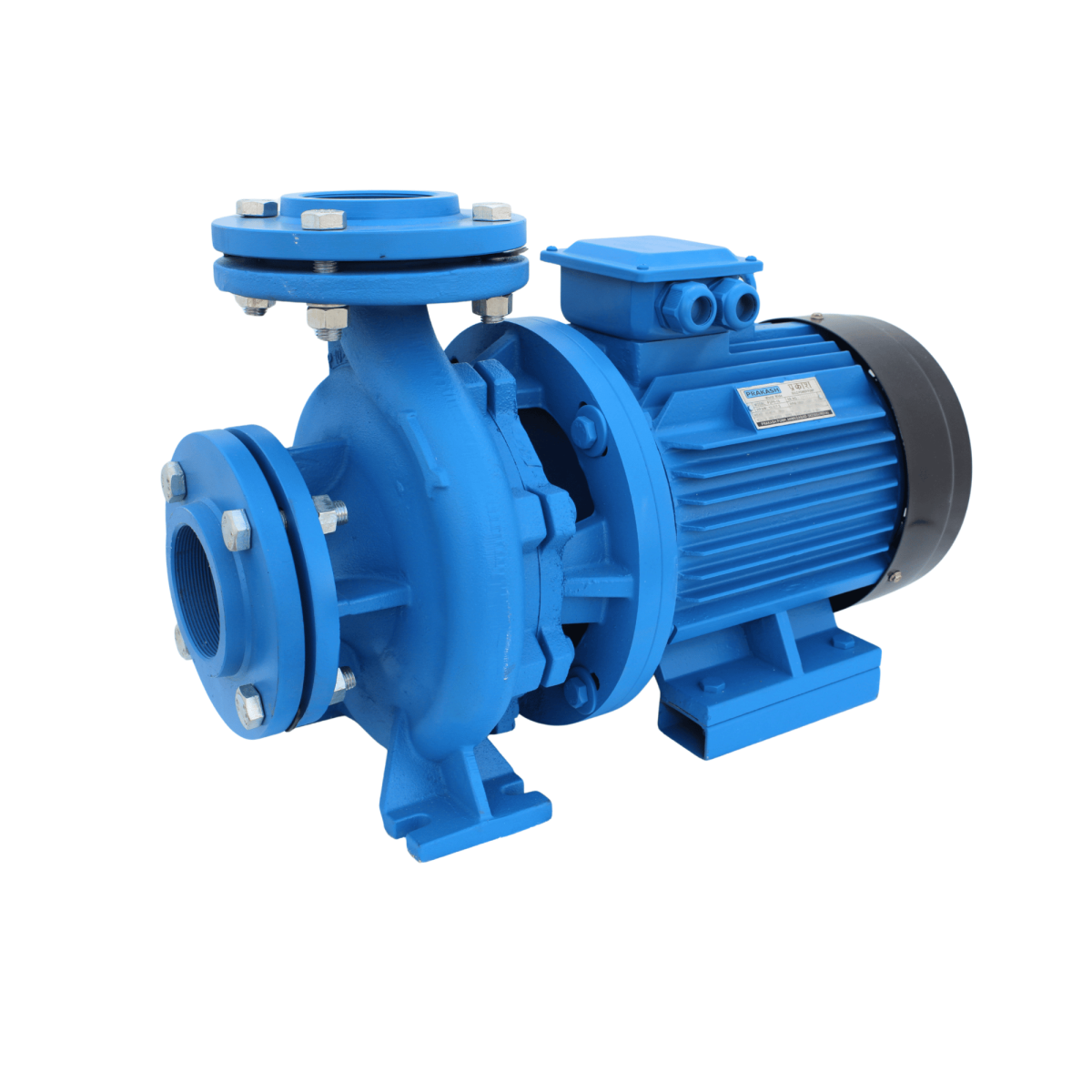

Prakash 10 HP Solo Industrial Pump - PSPP-10

Frequency : 60Hz

Model : PSPP-10

SKU : PSPP-10

Flow :0 LPM - 1200 LPM

Head : 8 Meter - 45 Meter

Application:

Civil & agriculture
Hot and cold water circulation
Spray or flowing irrigation
Autoclave feed
High-pressure system
Residential and commercial chiller plant

Specification:

Max Flow: 1200 LPM
Max Head: 45 m
Speed: 3500 rpm
Power: 7.5 kW / 10.0 HP
Inlet/Outlet: 3"x3"
Max Liquid Temperature: Up to 105°C
Max Ambient Temperature Up to 40°C
Insulation Class: F
Protection class: IPX4 / IP54
pH: 6-8

Pump Selection Chart :

Model	Volt (60Hz)	Phase	RPM	Inlet/Outlet	Max Flow (LPM)	Max Head (m)	Max Suction (m)
PSPP-10	380-420	3	3500	3"x3”	1200	45	8

Pump Performance Chart :

Model	Power		Inlet/Outlet	Q	M3/H	0	9	15	21	27	36	48	72
Model	KW	HP	Inlet/Outlet	Q	LPM	0	150	250	350	450	600	800	1200
PSPP-10	7.5	10	3"x3”	Head (meters)		45	44	43	42	41	39	33	8
