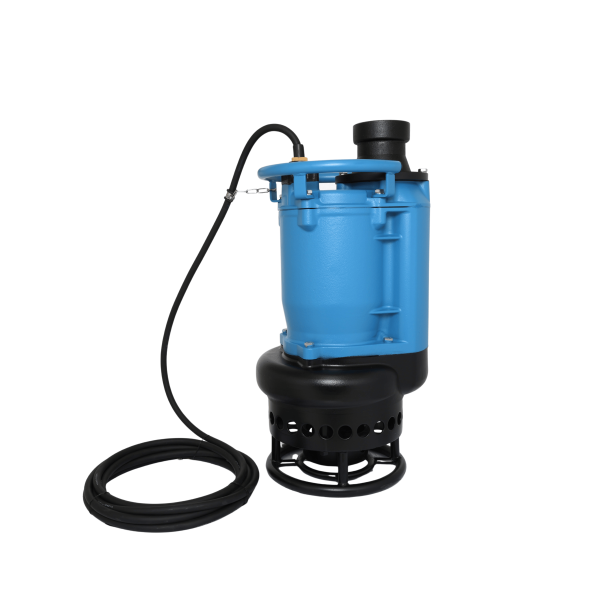

Model : PSSP7.5-4
SKU : PSSP7.5-4
Flow :1 M3/HR - 160 M3/HR
Head : 2 Meter - 17 Meter
Application:
Civil engineering
Mines, quarries, coal ore & slurries
Sewage treatment plants
General pumping purposes
Pumping fluid: sludge, liquids-containing mud and bentonite
Specification:
Max Head: 17 meter
Max Flow: 2667 LPM
Power: 7.5 KW / 10 HP
Speed : 1450 RPM
Power supply: Three phase 380V-420V, 50Hz
Insulation class: F
Protection class: IP68
Water temperature: up to 40°C
Output: 4"
Installation and use :
Submersible slurry pump with a 4-pole motor for an increased lifetime and greater convenience.
High chrome alloy impeller combined with agitator for pumping heavy slurry.
Slim design with a top discharge enabling installation in smaller casing.
For bentonite mixed water in foundation works or muddy water in civil engineering works.
Model | Power | Outlet | Q | M3/H | 0 | 40 | 80 | 100 | 120 | 160 | |
KW | HP | LPM | 0 | 667 | 1334 | 1667 | 2000 | 2667 | |||
PSSP7.5-4 | 7.5 | 10 | 4” | Head (meters) | 17 | 15 | 11 | 9 | 6 | 2 |
