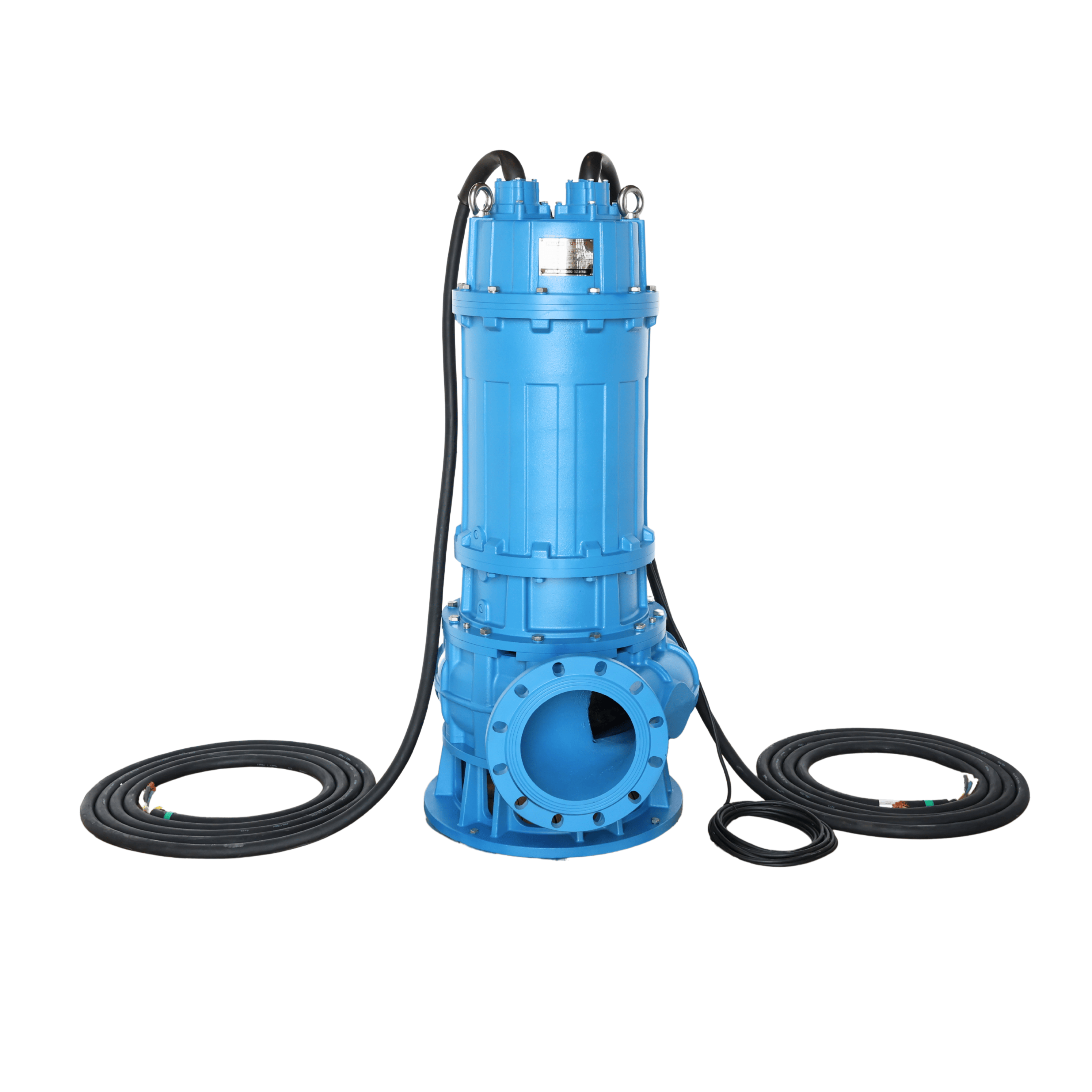

Model : PSP500-34-75

SKU : PSP500-34-75

Flow :1 M3/HR - 1000 M3/HR

Head : 5 Meter - 50 Meter

Application:

Municipal Projects
Industrial and Residential buildings
Mining
Civil Engineering
Pumping Sewage from domestic, hotel,  school and public buildings

Specifications :

Max Flow : 16660 LPM
Max Head : 50 Meter
Power : 75 KW / 100 HP
Speed : 1450 RPM
Water temperature : Up to 40˚C
pH : 6.5 - 8.5
Ambient temperature : up to 40˚C
Insulation Class : F
Duty : S1
Voltage : 380-420V, 50Hz

Feature & Benefits :
Non-clogging double vane impeller can pump large solid cove full range of head.
Chrome plated shaft ensure high corrosion resistant and wear resistance.
Designed for pumping sewage, waste water, rainwater and living water containing solid grains, various fabric, sludge and solid.

Installation and Use :

This model of pump is characterized with high heads, compact size, light weight and convenient use and vastly used in high-position water delivery, flush and places as construction sites. The float switch can automatically control on and off with the change of the water level. The protection in the motor can automatically cut off the power when it overheats or over current.

Model	Power		Outlet	Q	M3/H	0	150	250	350	450	550	650	750	950	950	1000
	KW	HP			LPM	0	2499	4165	5831	7497	9163	10829	12495	15827	15827	16660
PSP500-34-75	75	100	10”	Head (meters)		50	44	42	39	35.5	32	28	23	17	10	5
