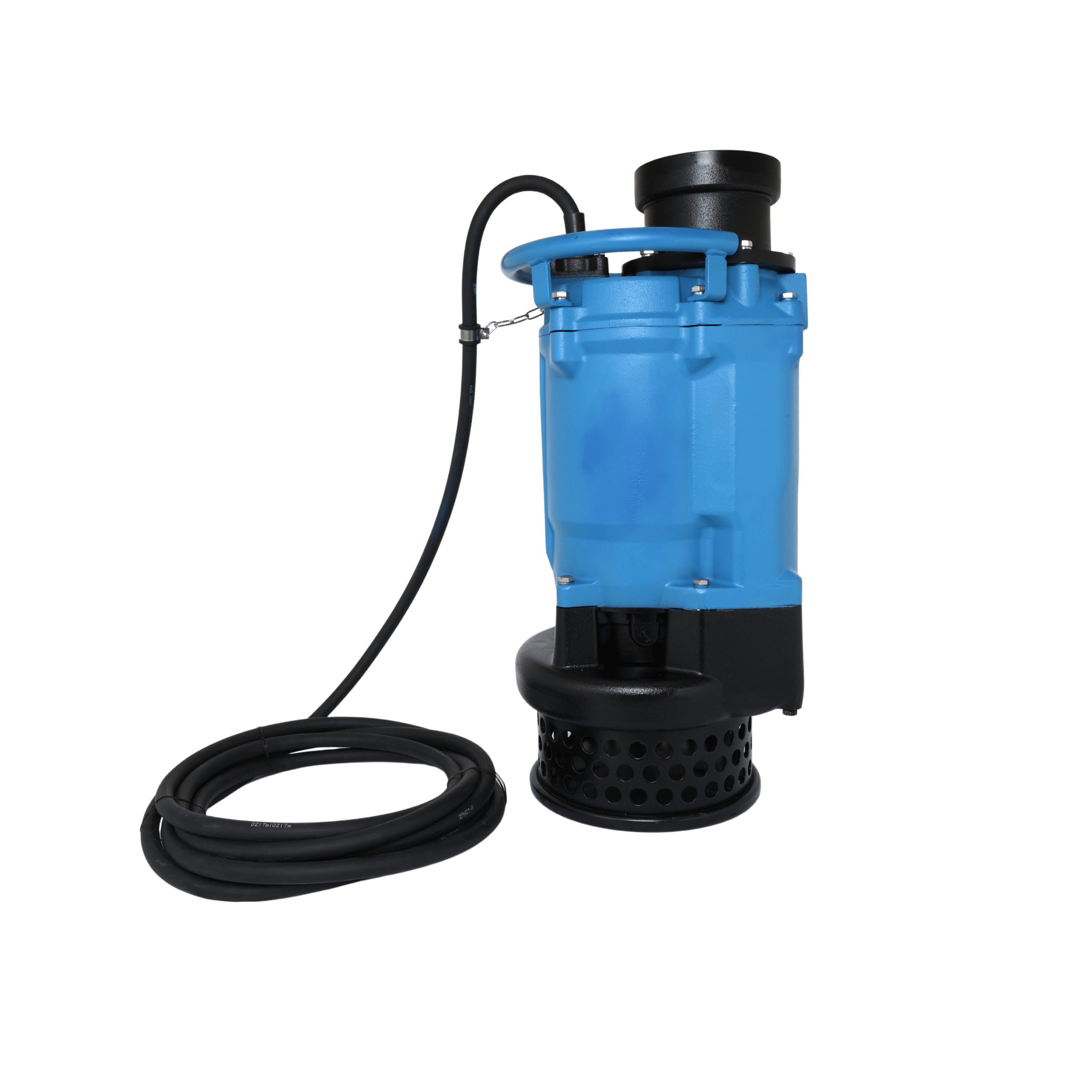

Model : PDP11-6

SKU : PDP11-6

Flow :1 M3/HR - 147 M3/HR

Head : 9 Meter - 32 Meter

Applications:

• Civil Engineering
• Mines, quarries, coal ore and slurries
• Sewage Treatment plants
• General pumping purposes

Specification:

• Water temperature : Up to 45°C
• Power Supply : Three phase 380-420V, 50Hz
• Power : 11Kw
• Insulation Class: F
• Protection Class : IP68
• Max Flow : 2450 LPM
• Max Head : 32m
• PH : 6.5 to 8.5
• Cable length : 8 m



Model	Power		Outlet	Q	M3/H	0	10	20	30	40	50	60	70	80	90	100	110	125	147
	KW	HP			LPM	0	167	333	500	667	834	1000	1167	1334	1500	1667	1834	2084	2450
PDP11-6	11	15	6”	Head (meters)		32	31.5	31	30	29	28	26.5	25	23	21	18.5	16	13	13

Function, feature and Installation :

• Compact design, high performance and exceptional durability for handling abrasive liquid, widely used in general construction and civil engineering.
• The body of motor and pump is made of rigid cast iron or stainless steel for long-lasting durability.
• Greatly increased maximum submersion depth due to mechanical seal resistance to high pressure (0.5Mpa)
• Semi-open impeller made of high chrome alloy/ SS 304  match with wear plate (ductile iron) achieves superior durability.
• Effective motor cooling due to discharge channel cast iron as part of the motor housing. Space economy by a top outlet.
• Hermetically sealed motor equip build-in thermal protection. The protector in the motor can automatically cut off the power when it overheats or over current.
