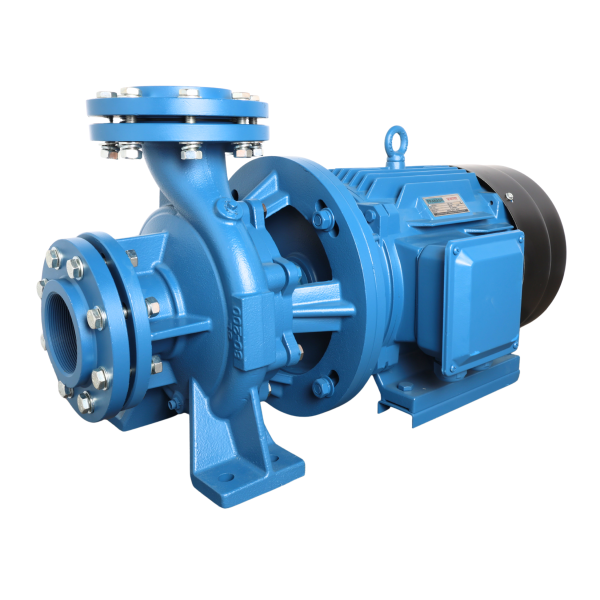

Prakash 15 HP Centrifugal Monoblock Pump PCM-15
Frequency : 60Hz
Model : PCM-15
SKU : PCM-15
Flow :0 LPM - 1500 LPM
Head : 3 Meter - 44 Meter
Application:
- Civil Engineering
- Mines, quarries, coal ore, and slurries
- Sewage treatment plants
- General pumping purposes
- Max Flow: 1500 LPM
- Max Head: 44 m
- Speed: 3500 rpm
- Power: 11 kW / 15.0 HP
- Inlet/Outlet: 3"x3"
- Max Liquid Temperature: Up to 105°C
- Max Ambient Temperature Up to 40°C
- Insulation Class: F
- Protection class: IPX4 / IP54
- pH: 6-8
Pump Selection Chart :
|
|
|
|
| Max Flow | Max Head (m) | Max Suction |
|
|
|
|
|
|
|
|
Pump Performance Chart :
| Power |
|
| M3/H | 0 | 10 | 30 | 50 | 60 | 70 | 80 | 90 | |
KW | HP | LPM | 0 | 167 | 500 | 834 | 1000 | 1167 | 1334 | 1500 | |||
PCM-15 | 11 | 15 | 3"x3” | Head (meters) | 44 | 43 | 40 | 35 | 32 | 26 | 17 | 3 | |
