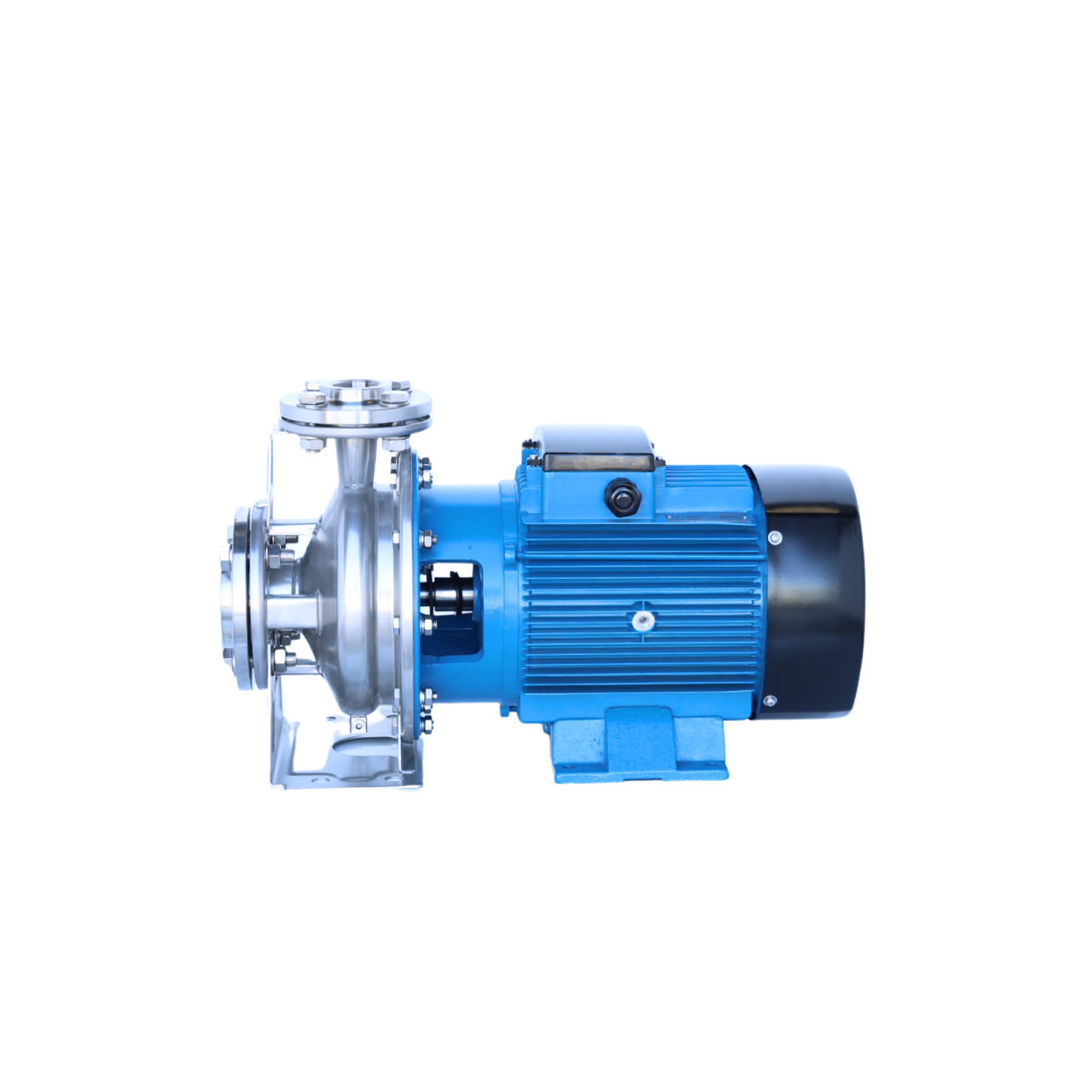

Prakash 15 HP Centrifugal Monoblock SS Pump PCM80-50-15
Frequency : 60Hz
Model : PCM80-50-15
SKU : PCM80-50-15
Flow :0 LPM - 1200 LPM
Head : 41 Meter - 58 Meter
Application:
- Pressure boiler feeding
- Pure water treating system
- Refining chemical industries
- Hot and cold water circulation
- Washing & sprinkling
- Water supply system
- Max Flow: 1200 LPM
- Max Head: 58 m
- Speed: 3500 rpm
- Power: 11 kW / 15 HP
- Inlet/Outlet: 3"x2."
- Max Liquid Temperature: Up to 90°C
- Max Ambient Temperature Up to 40°C
- Insulation Class: F
- Protection class: IPX4 / IP54
- pH: 4-10
Pump Selection Chart :
|
|
|
|
| Max Flow | Max Head (m) | Max Suction |
|
|
|
|
|
|
|
|
Pump Performance Chart :
| Power |
|
| M3/H | 0 | 24 | 30 | 36 | 42 | 48 | 60 | 72 | |
KW | HP | LPM | 0 | 400 | 500 | 600 | 700 | 800 | 1000 | 1200 | |||
PCM80-50-15 | 11 | 15 | 3"x2” | Head (meters) | 58 | 53 | 52 | 51 | 50.5 | 50 | 46 | 41 | |
