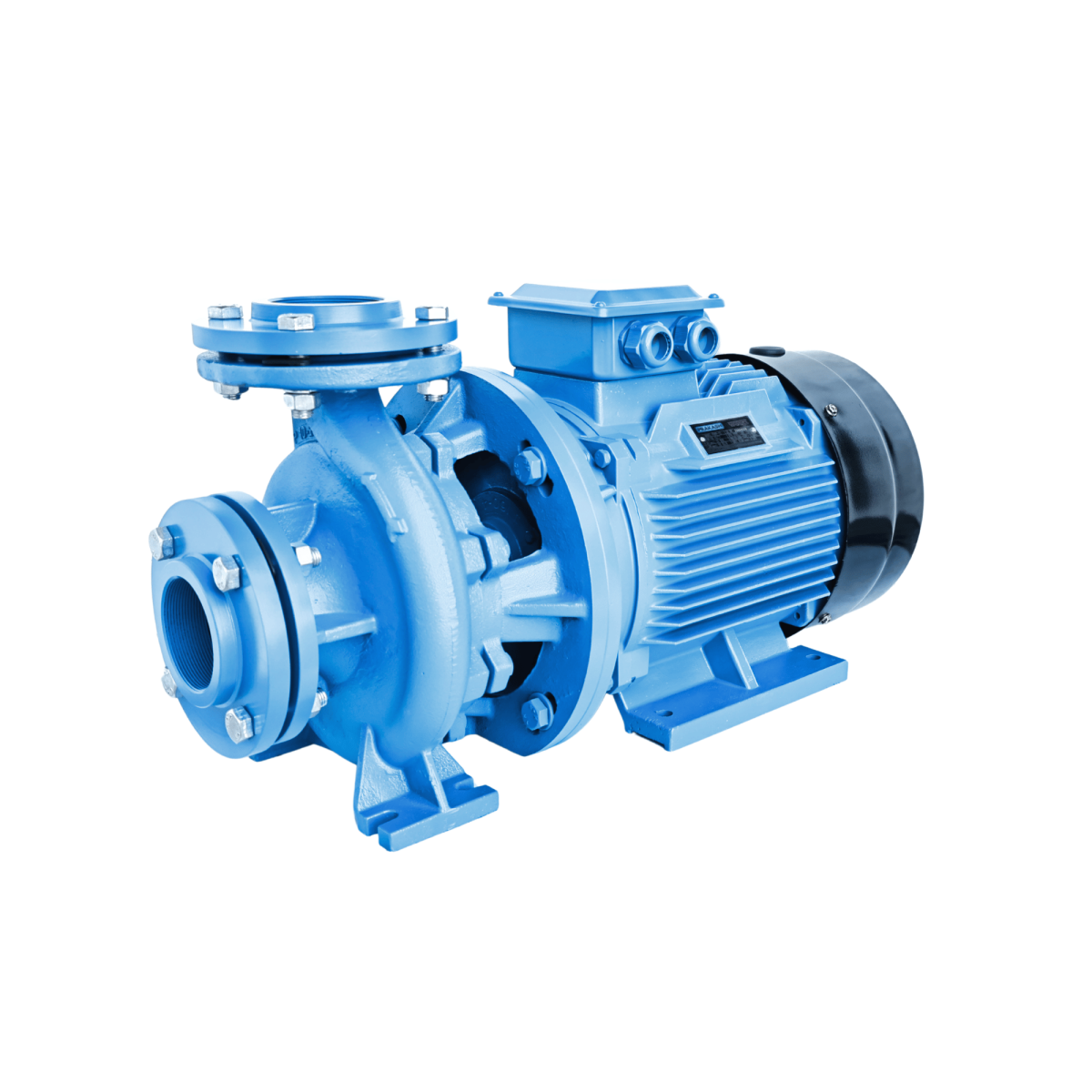

Model : PSPP-15

SKU : PSPP-15

Flow :1 M3/HR - 90 M3/HR

Head : 24 Meter - 55 Meter

Applications:-

• Civil & agriculture
• Industrial or general plant use.
• Hot and cold water circulation
• Spray or flowing irrigation
• Autoclave feed
• High pressure system
• Residential and commercial chiller plant
• Conditioning and any other general service requiring transfer of clean liquids.



Specifications:-

• Max Flow: 1500 LPM
• Max Head: 55m
• Speed : 2900 RPM
• Power : 11 Kw.
• Manometric Suction Lift Up to 8m
• Liquid Temperature between 10°C to 105°C
• Ambient Temperature Up to 40°C
• Working Pressure 10 Bar
• Voltage : 380-420V, 50Hz
• Inlet/Outlet : 3"x3" (upon request 2.5"x2")

  Installation and Use:-
  These pumps are ideal for pumping clean water and other chemically and mechanically non-aggressive liquids. These system can be installed in any position, provide the inlet opening faces upwards, and, thanks to their Special design-which allows back pull out of the motor and the rotary parts Of the pump and subsequent re-assembly without having to remove the pump Body and the pipes connected to it – can be easily and conveniently used for a wide variety of applications in civil, agricultural, industrial or general plant uses. Water supply, spray or flowing irrigation, autoclave feed, high pressure system heating, conditioning and any other service requiring transfer of clean liquids.

Model	Power		Inlet /Outlet	Q	M3/H	0	6	9	12	15	18	21	24	27	30	36	42	48	54	60	72	84	90
	KW	HP			LPM	0	100	150	200	250	300	350	400	450	500	600	700	800	900	1000	1200	1400	1500
PSPP-15	11	15	3"x3"	Head (meters)		55	54.5	54.5	54.5	54.5	54.5	54.5	54	53.5	53	52	50	48	46	43	36	28	24
