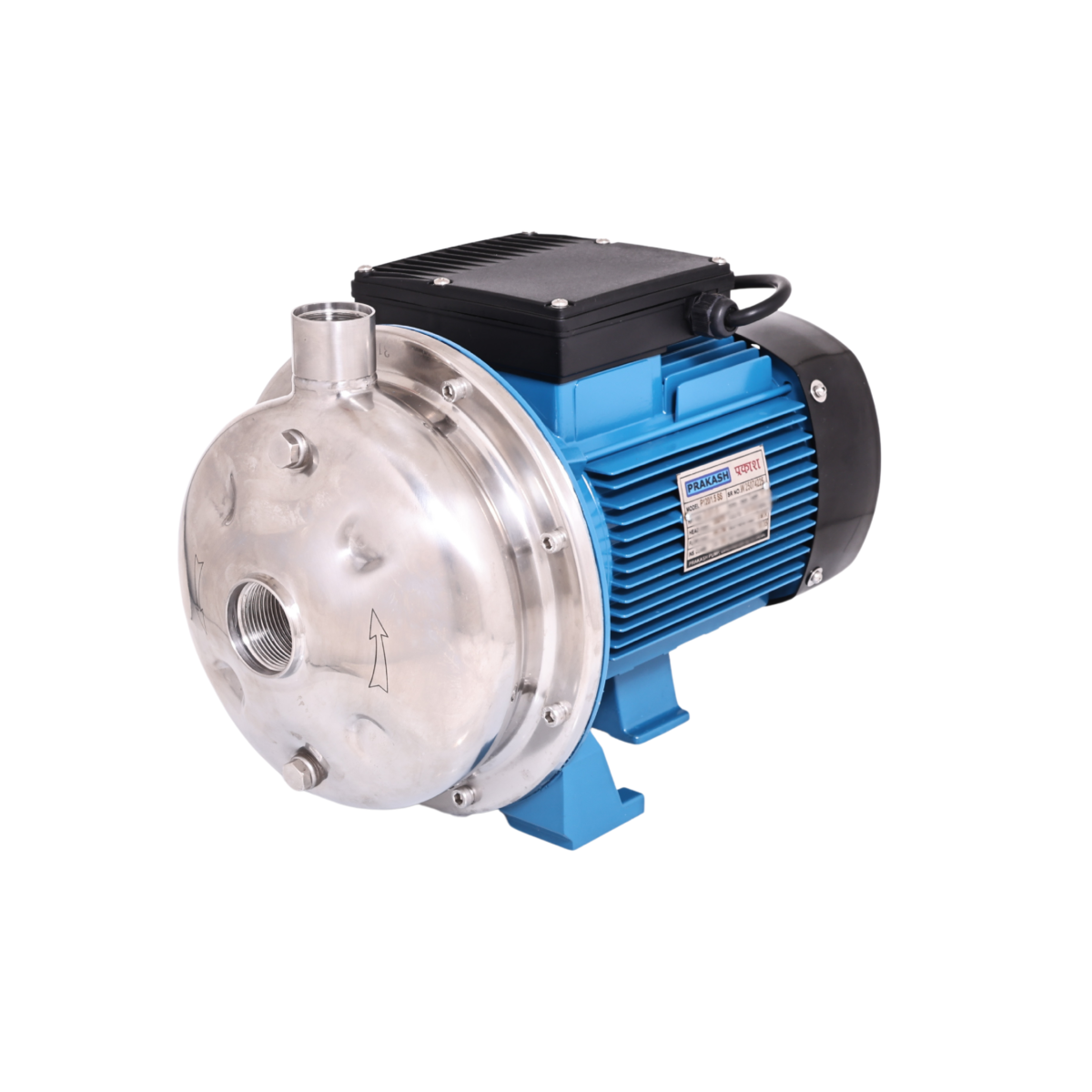

Prakash 2.0 HP Centrifugal SS Pump P120/1.5
Frequency : 60Hz
Model : P120/1.5
SKU : P120/1.5
Flow :0 LPM - 180 LPM
Head : 20 Meter - 35 Meter
Applications:
Water supply systems
Pressure boiler feeding
Pure water treating systems
Pharmaceutical and food processing
Refining and chemical industries
Washing and sprinkling
RO Plants
Specifications :
Max Flow: 180 meters
Power: 1.5 KW / 2.0 HP
Inlet /Outlet: 1.25″x1″
Speed: 3500 RPM
Max. Working Pressure: 8 Bar
Liquid Temperature: up to 90°C
Ambient Temperature range: up to 40°C
pH: 4 - 10
Insulation Class: F
Protection Class: IPX4
Altitude : < 1000m
Features :
This series is suitable for transporting clean media that are non-aggressive to stainless steel 316.
Compact & nice appearance while being efficient and low in voice.
Our pumps have a reliable seal, which results in the case of maintenance & use.
Pump Selection Chart :
|
|
|
|
| Max Flow | Max Head (m) | Max Suction |
|
|
|
|
|
|
|
|
Pump Performance Chart :
| Power |
|
| M3/H | 0 | 1.2 | 3.6 | 6.0 | 7.2 | 84 | 9.6 | 10.8 | |
KW | HP | LPM | 0 | 20 | 60 | 100 | 120 | 140 | 160 | 180 | |||
P120/1.5 |
|
|
|
|
|
|
|
|
|
|
| 20 | |
