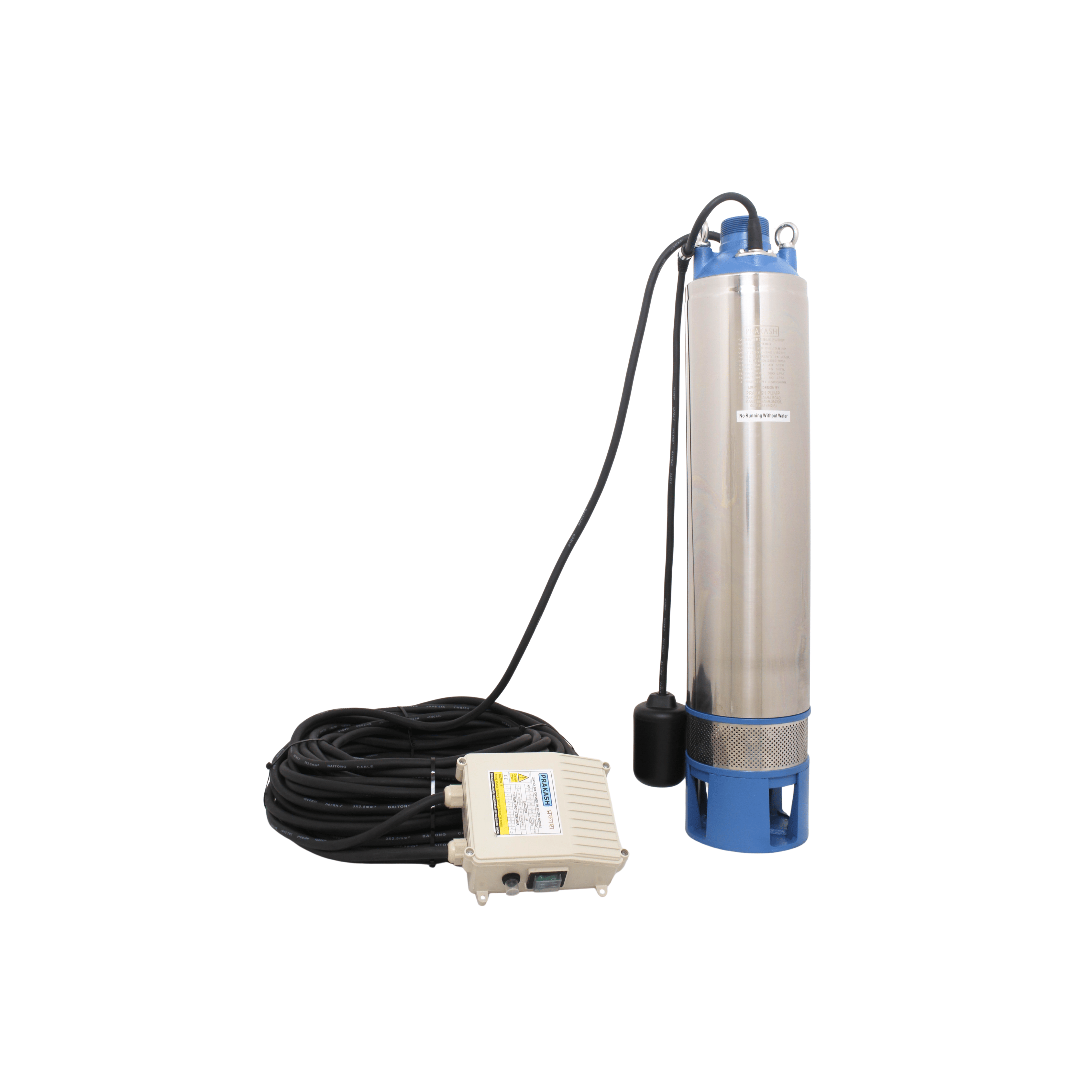

Prakash 2.0 HP Open Well Sub. Pump P1003
Model : P1003
SKU : P1003
Flow :1 LPM - 350 LPM
Head : 1 Meter - 49 Meter
Applications:
- For water supply from open wells, tanks, or reservoirs.
- For domestic use, Civil and industrial applications.
- For garden and irrigation, the Utilization of rainwater
- Head: 49 Mtr
- Flow: 350 LPM
- Power: 2 KW / 3 HP
- Insulation Class: F
- Protection Class: IP 68
- Cable length: 15m with a Float switch
- Minimum Immersion depth: 150mm
- Water temperature up to 40°C
- Minimum Internal diameter of well: 155m
- Power supply: 220-240V Single Phase 50 Hz
- Single phase with a built-in capacitor and thermal protector on the control box is required. Three-phase with built-in thermal protector.
- Hermetically sealed motor equipment has built-in thermal protection. The protector in the motor can automatically cut off the power when it overheats or overcurrent.
- Close-coupled multi-stage submersible pump in chrome–nickel stainless steel.
- The hydraulic part under the motor and motor cooled by the pumped water for safe operation, also with the pump is only partially immersed.
- Double shaft seal with an interposed oil chamber.
- The suction strainer prevents the entrance of solids with a diameter bigger than 2 mm.
Model
Power
Q
M3/H
0
3
6
9
10
12
15
18
21
KW
HP
LPM
0
50
100
150
167
200
250
300
350
P1003
2.2
3.0
Head (m)
49
46
43
39
38
35
30
24
15
