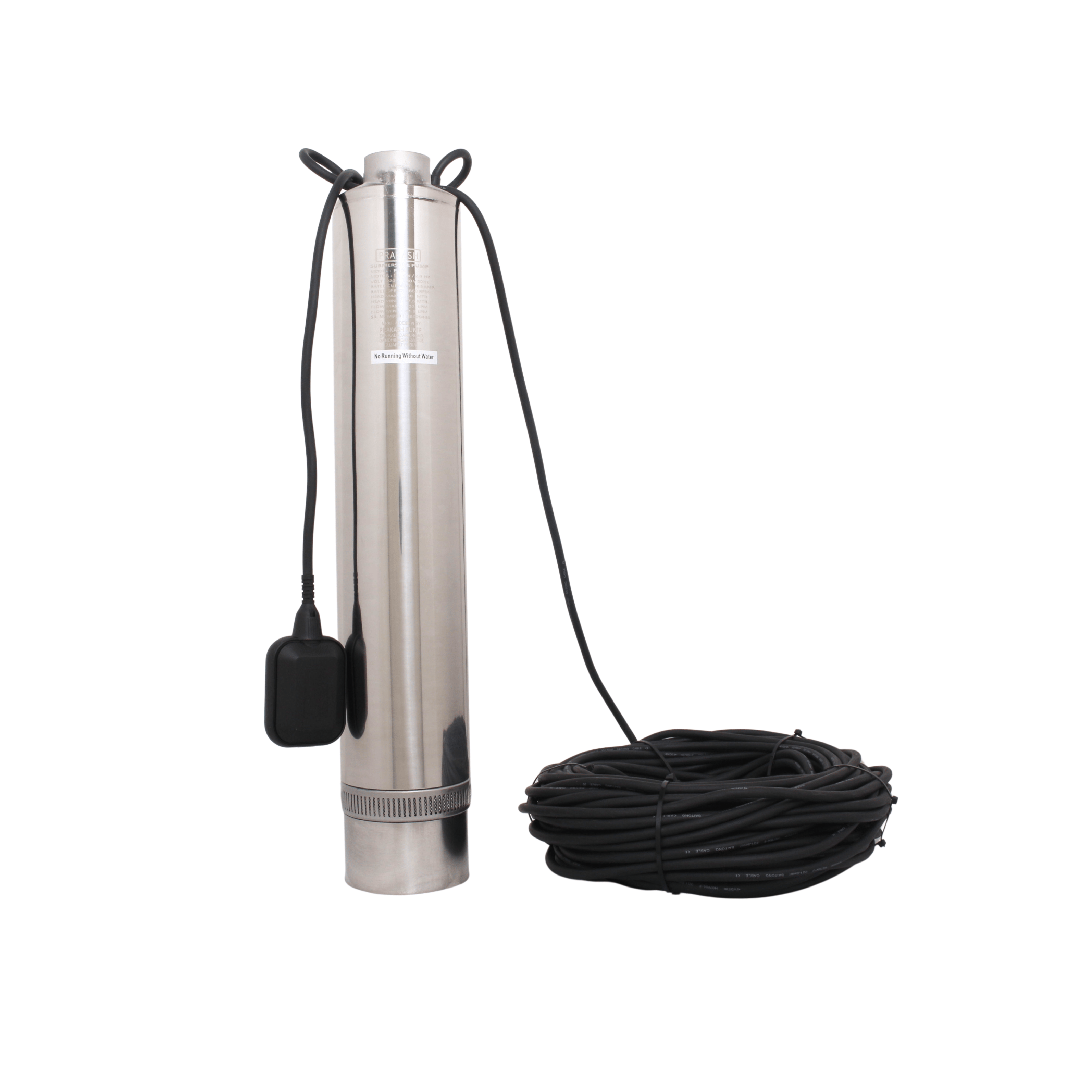

Model : P408

SKU : P408

Flow :1 LPM - 133 LPM

Head : 27.5 Meter - 88 Meter

Applications:

• For water supply from open wells, tanks or reservoirs.
• For domestic use, Civil and industrial applications.
• For garden and irrigation, Utilization of rain water.



Specification:

• Power : 1.5 KW / 2 HP
• Max Head : 88 M
• Max Flow : 133 LPM
• Outlet : 2"
• Water temperature : up to 35°C
• Minimum internal diameter of well: Ø132mm.
• Insulation Class : F
• Protection Class : IP 68
• Power Supply : Single phase 220V-240V, 50Hz



  Function and feature:

  • Single phase with built-in capacitor and thermal protector on control box required Three phase with built-in thermal protector.
  • Hermetically sealed motor equip build-in thermal protection. The protector in the motor can automatically cut off the power when it overheats or over current.
  • Close coupled multi-stage submersible pump in chrome –nickel stainless steel.
  • Hydraulic part under the motor and motor cooled by the pumped water for safe operation also with the pump only partially immersed.
  • Double shaft seal with interposed oil chamber.
  • The suction strainer prevents the entrance of solids with diameter bigger than 2 mm.




    Model	Power		Outlet	Q	M3/H	0	2.5	3	3.5	4	4.5	5	6	7	8
    	KW	HP			LPM	0	42	50	58	67	75	83	100	117	133
    P408	1.5	2	2"	Head (meters)		88	80	77.5	75	72	68.5	65	56	45	27.5
