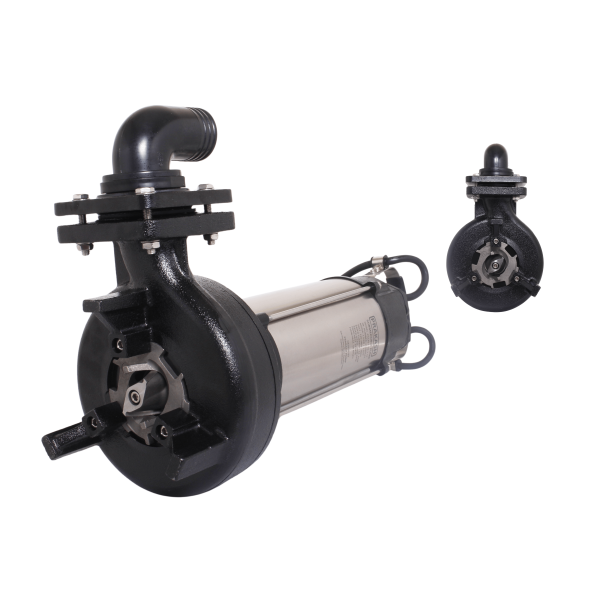

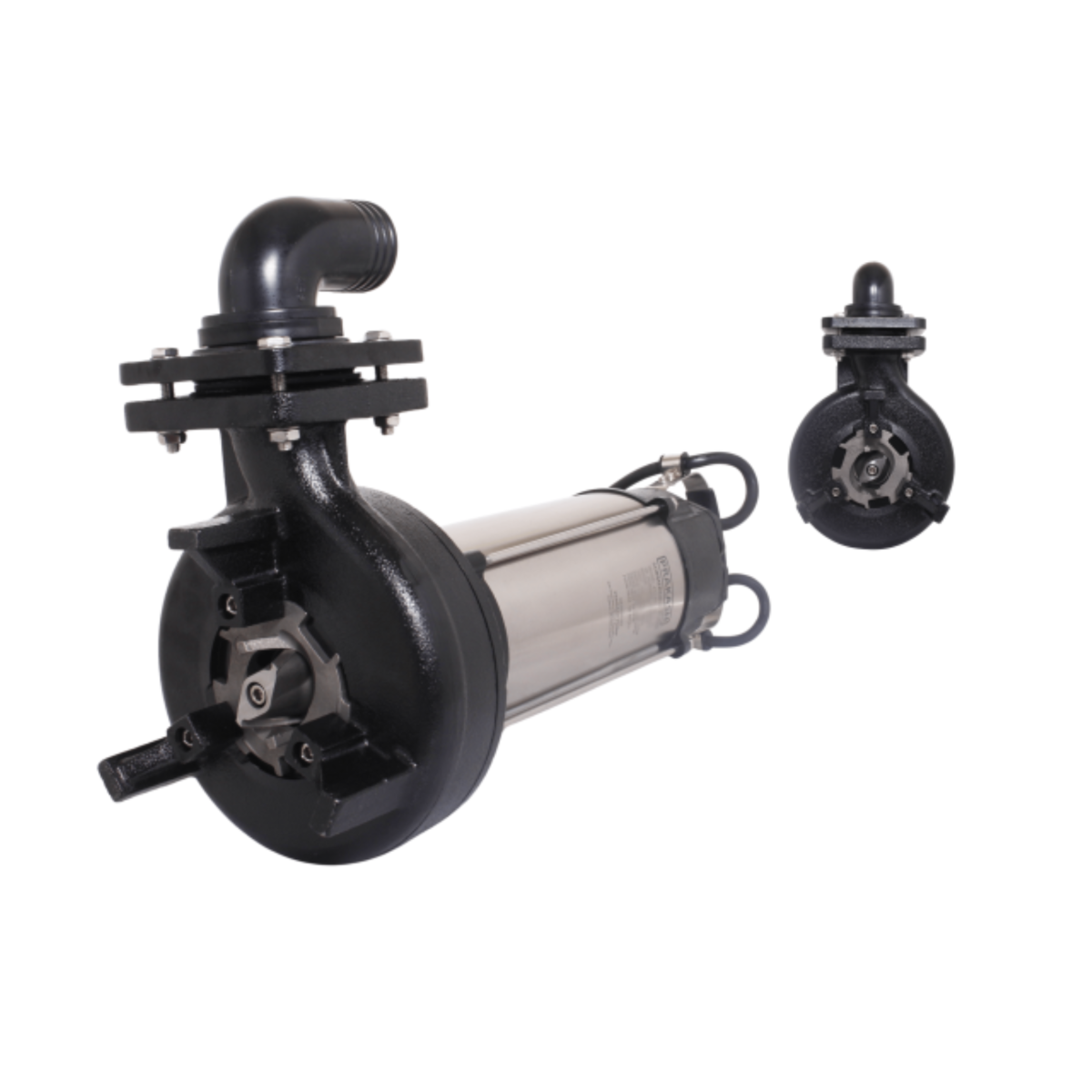

Prakash 2.0 HP Sewage Cutter Pump PSCP22-18-1.5F

  • Prakash 2.0 HP Sewage Cutter Pump PSCP22-18-1.5F
  • Prakash 2.0 HP Sewage Cutter Pump PSCP22-18-1.5F

Frequency : 60Hz

Model : PSCP22-18-1.5F

SKU : PSCP22-18-1.5F

Flow :0 LPM - 300 LPM

Head : 5 Meter - 22 Meter

Application:

  • Scum pumping at the wastewater treatment plant
  • Municipal projects
  • Industrial packaged pump station
  • Home and domestic application (Special for the kitchen)
  • Pumping agricultural manure (dairy, hog, and poultry)


Specification:
  • Max Flow: 300 LPM
  • Max Head: 22 m
  • Speed: 3450 rpm
  • Power: 1.5 kW / 2.0 HP
  • Outlet: 2"
  • Max Liquid Temperature: Up to 40°C
  • Max Ambient Temperature Up to 40°C
  • Insulation Class: F
  • Protection class: IPX8 / IP68
  • pH: 4-10

Pump Selection Chart :


                         Model


        Volt
     (60Hz)


    Phase


   RPM


   Output

  Max     Flow
(LPM)

  Max   Head     (m)


              PSCP22-18-1.5F/T


  220/380


      1&3


  3450


         2"


   300


     22

Pump Performance Chart :



 Model

Power


Outlet


Q

M3/H

0

3

  6

9

 12

 15

   18

KW

HP

LPM

0

50

 100

150

200

250

  300

PSCP22-18-1.5F/T

 1.5

2.0

2”

Head (meters)

22

20

   18

 16

 13.5

 10

    5
