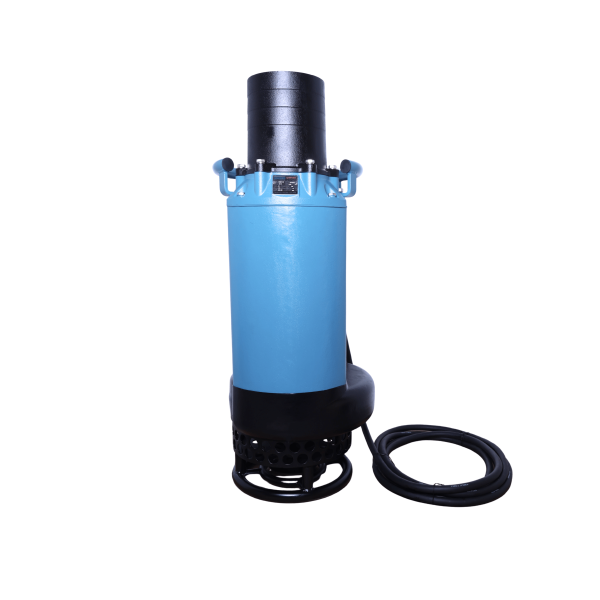

Prakash 20 HP Submersible Slurry Pump PSSP15-8
Frequency : 60Hz
Model : PSSP15-8
SKU : PSSP15-8
Flow :0 LPM - 6168 LPM
Head : 2 Meter - 22 Meter
Application:
Civil engineering
Mines, quarries, coal ore & slurries
Sewage treatment plants
General pumping purposes
Pumping fluid: sludge, liquid-containing mud, and bentonite
Specification:
Max Head: 22 meters
Max Flow: 6168 LPM
Power: 15 KW / 20Hp
Speed: 1750 RPM
Power supply: Three-phase 380V-420V, 60Hz
Insulation class: F
Protection class: IP68
Water temperature: up to 40°C
Output: 8"
Installation and Use :
Submersible slurry pump with a 4-pole motor for an increased lifetime and greater convenience.
A High-chrome alloy impeller combined with an agitator for pumping heavy slurry.
Slim design with a top discharge enabling installation in a smaller casing.
For bentonite mixed with water in foundation works or muddy water in civil engineering works.
Model | Power | Outlet | Q | M3/H | 0 | 40 | 80 | 120 | 200 | 280 | 320 | 370 | |
KW | HP | LPM | 0 | 667 | 1334 | 2000 | 3334 | 4668 | 5334 | 6168 | |||
PSSP15-8 | 15 | 20 | 8” | Head (meters) | 22 | 21.5 | 20.5 | 19.5 | 16 | 12 | 8 | 2 | |
