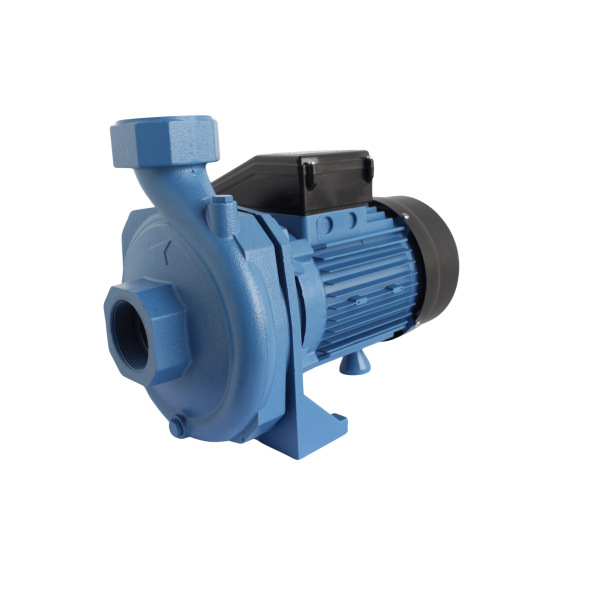

Model : PCP20A

SKU : PCP20A

Flow :1 LPM - 425 LPM

Head : 4 Meter - 30 Meter

Application:

• Domestic Water Supply
• Lawn Sprinkler, villas
• Automobile Washing
• Gardens Water Supply
• Pressure Boosting in Various Fields, small air conditioner system or supporting equipment etc.



Specifications:

• Max Head : 30 meter
• Max Flow : 425 LPM
• Speed : 2900 rpm
• Power : 1.5Kw
• Inlet/Outlet : 2" X 2"
• Liquid Temperature : up to 90°C
• Insulation Class : F/B
• Protection Class : IP54
• Voltage : 220-240V, 50Hz
• Thermal Protection : In built (Single phase)
• Max Suction : up to 8m



Installation and use :
Suitable for clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.

Thanks for it's reliability, the fact that these pumps are easy to use and very economical, these are ideal for domestic and civil use and in particular for distributing water in combination with small and medium pressure sets, irrigation of gardens and allotment. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Model	Power		Inlet /Outlet	Q	M3/H	0	1.5	3	4.5	6	7.5	9	10.5	12	13.5	15	16.5	18	19.5	21	22.5	24	25.5
	KW	HP			LPM	0	25	50	75	100	125	150	175	200	225	250	275	300	325	350	375	400	425
PCP20A	1.5	2	2”x2”	Head (meters)		30	29.5	29	28.5	28	27.5	26.5	25.5	24	22	20	18	16	14	12	9.5	7	4
