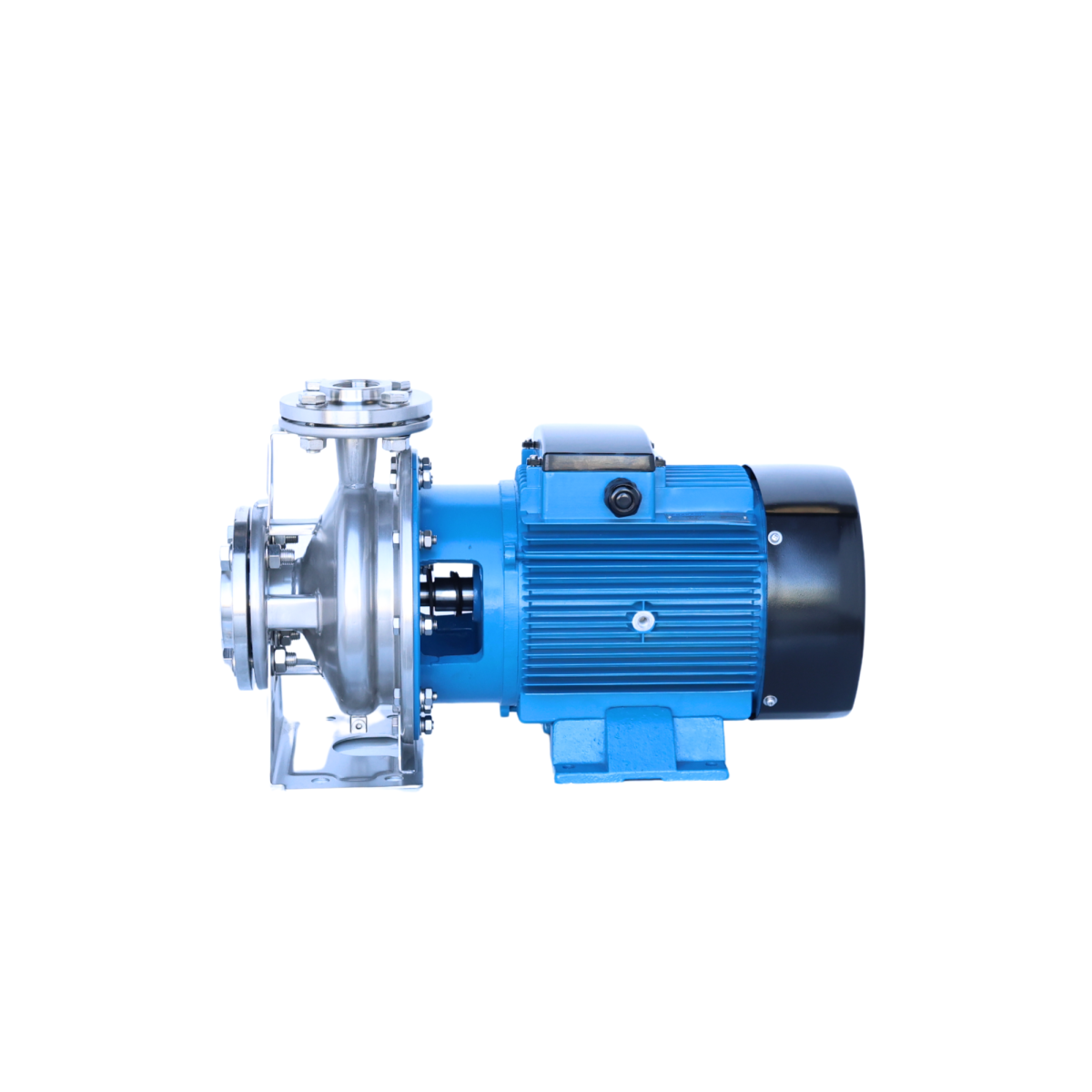

Prakash 20 HP Centrifugal Monoblock SS Pump PCM100-65-20
Frequency : 60Hz
Model : PCM100-65-20
SKU : PCM100-65-20
Flow :0 LPM - 2200 LPM
Head : 23 Meter - 47 Meter
Application:
- Pressure boiler feeding
- Pure water treating system
- Refining chemical industries
- Hot and cold water circulation
- Washing & sprinkling
- Water supply system
- Max Flow: 2200 LPM
- Max Head: 47 m
- Speed: 3500 rpm
- Power: 15 kW / 20 HP
- Inlet/Outlet: 4"x2.5"
- Max Liquid Temperature: Up to 90°C
- Max Ambient Temperature Up to 40°C
- Insulation Class: F
- Protection class: IPX4 / IP54
- pH: 4-10
Pump Selection Chart :
|
|
|
|
| Max Flow | Max Head (m) | Max Suction |
|
|
|
|
|
|
|
|
Pump Performance Chart :
| Power |
|
| M3/H | 0 | 42 | 48 | 72 | 108 | 120 | 126 | 132 | |
KW | HP | LPM | 0 | 700 | 800 | 1200 | 1800 | 2000 | 2100 | 2200 | |||
PCM100-65-20 | 15 | 20 | 4"x2.5” | Head (meters) | 47 | 44 | 43 | 39 | 32 | 28 | 26 | 23 | |
