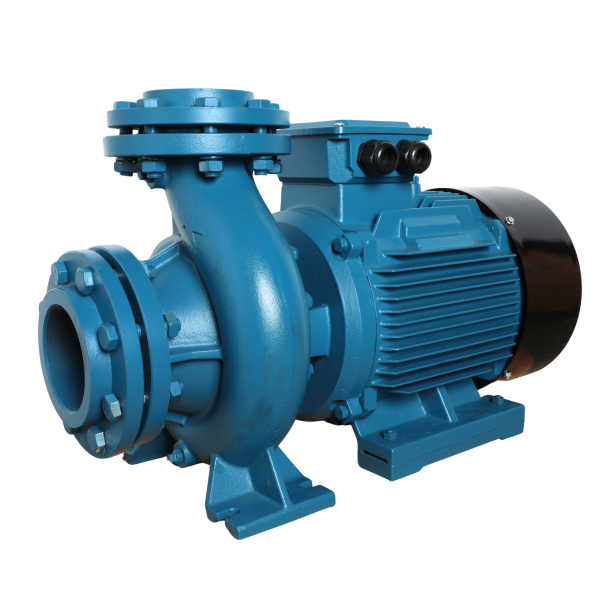

Model : PCM-20A

SKU : PCM-20A

Flow :1 M3/HR - 180 M3/HR

Head : 13 Meter - 30 Meter

Applications:-
Agricultural, Industries
Irrigation of Fields/Farms
Hot and cold water circulation
Housing Complexes
Fire Fighting System
Community water supply

Specifications:-

• Max Flow : 3000 LPM
• Max Head : 30m
• Speed : 2900 RPM
• Power : 15 Kw
• Suction : Up to 8m
• Liquid Temperature between 0°C to 105°C
• Ambient Temperature Up to 40°C
• Max Working Pressure 10 Bar
• Voltage : 380-420V, 50Hz



  Installation and Use:-

  These pumps are ideal for pumping clean water and other chemically and mechanically non-aggressive liquids and thanks to it Special design which allows back pull out of the motor and the rotary parts of the pump can be easily and conveniently used for a wide variety of applications in civil, agricultural, industrial or general plant uses. Water supply, spray or flowing irrigation, autoclave feed, high pressure system heating, conditioning and any other service requiring transfer of clean liquids.



Model	Power		Inlet /Outlet	Q	M3/H	0	2	40	60	80	100	120	140	160	180
	KW	HP			LPM	0	333	667	1000	1340	1670	2000	2340	2670	3000
PCM-20A	15	20	4”x3”	Head (meters)		30	30	30	29	28	26	24	22	19	13
