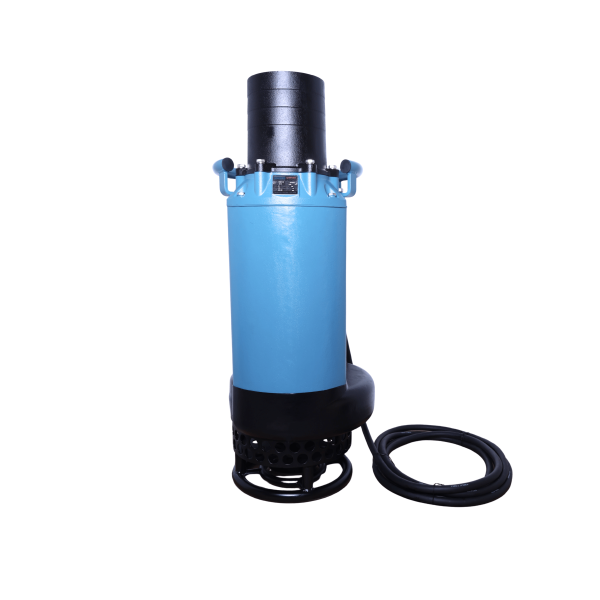

Model : PSSP15-8
SKU : PSSP15-8
Flow :1 M3/HR - 370 M3/HR
Head : 2 Meter - 22 Meter
Application:
Civil engineering
Mines, quarries, coal ore & slurries
Sewage treatment plants
General pumping purposes
Pumping fluid: sludge, liquids-containing mud and bentonite
Specification:
Max Head: 22 meter
Max Flow: 6168 LPM
Power: 15 KW / 20Hp
Speed : 1450 RPM
Power supply: Three phase 380V-420V, 50Hz
Insulation class: F
Protection class: IP68
Water temperature: up to 40°C
Output: 8"
Installation and Use :
Submersible slurry pump with a 4-pole motor for an increased lifetime and greater convenience.
High chrome alloy impeller combined with agitator for pumping heavy slurry.
Slim design with a top discharge enabling installation in smaller casing.
For bentonite mixed water in foundation works or muddy water in civil engineering works.
Model | Power | Outlet | Q | M3/H | 0 | 40 | 80 | 100 | 120 | 160 | 200 | 240 | 280 | 320 | 360 | 370 | |
KW | HP | LPM | 0 | 667 | 1334 | 1667 | 2000 | 2667 | 3334 | 4001 | 4668 | 5334 | 6001 | 6168 | |||
PSSP15-8 | 15 | 20 | 8” | Head (meters) | 22 | 21.5 | 20.5 | 20 | 19.5 | 18 | 16 | 14 | 12 | 8 | 3 | 2 |
