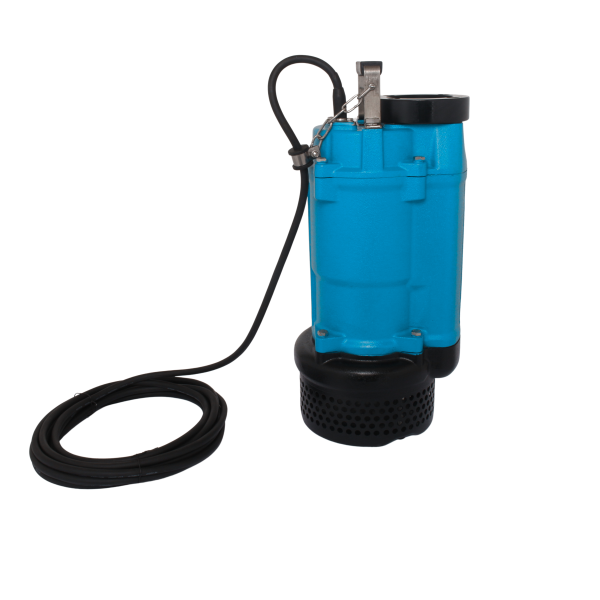

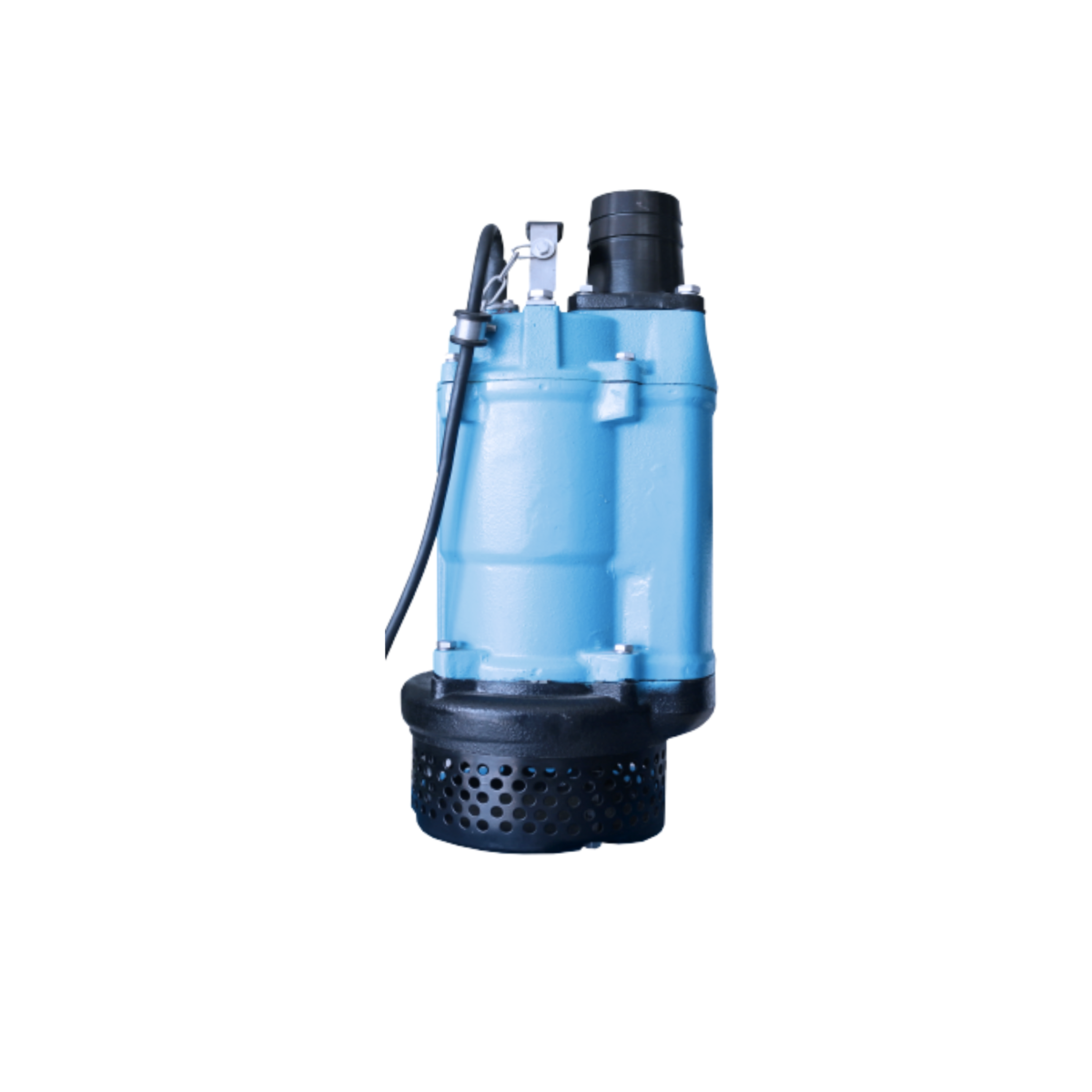

Application:
Civil Engineering
Mines, quarries, coal ore, and slurries
Sewage treatment plants
General pumping purposes

• Max Flow: 55 M3/HR
• Max Head: 19 m
• Speed: 3450 RPM
• Power: 2.2 kW / 3.0 HP
• Voltage: 380-420V, 60Hz
• Outlet: 3"
• Max Liquid Temperature: Up to 45°C
• Max Ambient Temperature Up to 45°C
• Insulation Class: F
• Protection class: IPX8 / IP68
• Liquid pH Value: 6.5-8.5

• Compact design, high performance and exceptional durability for handling abrasive liquid, widely used in general construction and civil engineering.
• The body of motor and pump is made of rigid cast iron or stainless steel for long-lasting durability.
• Greatly increased maximum submersion depth due to mechanical seal resistance to high pressure (0.5Mpa)
• Semi-open impeller made of SS 304 match with diffuser plate (SS304) achieves superior durability.
• Effective motor cooling due to discharge channel cast iron as part of the motor housing. Space economy by a top outlet.
• Hermetically sealed motor equip build-in thermal protection. The protector in the motor can automatically cut off the power when it overheats or over current.

Pump Performance Chart :
