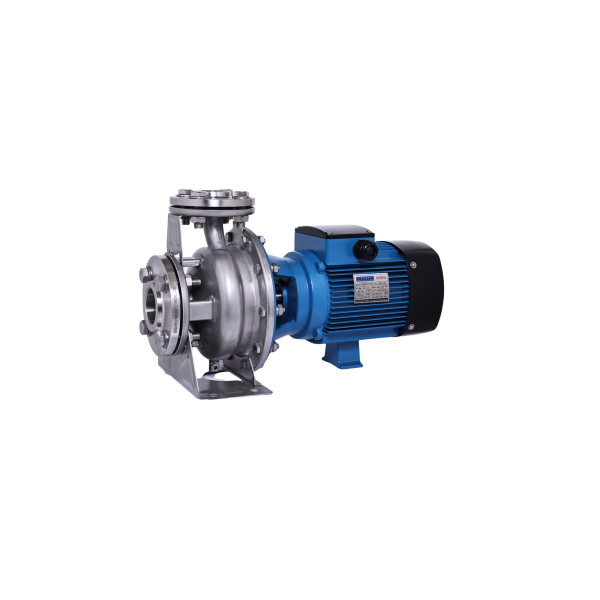

Prakash 3.0 HP Centrifugal Monoblock SS Pump PCM50-32-3S

Frequency : 60Hz

Model : PCM50-32-3S

SKU : PCM50-32-3S

Flow :0 LPM - 333 LPM

Head : 27 Meter - 37 Meter

Application:

Pressure boiler feeding
Pure water treating system
Refining chemical industries
Hot and cold water circulation
Washing & sprinkling
Water supply system

Specification:

Max Flow: 333 LPM
Max Head: 37 m
Speed: 3500 rpm
Power: 2.2 kW / 3.0 HP
Inlet/Outlet: 2"x1.25"
Max Liquid Temperature: Up to 90°C
Max Ambient Temperature Up to 40°C
Insulation Class: F
Protection class: IPX4 / IP54
pH: 4-10

Pump Selection Chart :

Model	Volt (60Hz)	Phase	RPM	Inlet/Outlet	Max Flow (LPM)	Max Head (m)	Max Suction (m)
PCM50-32-3.0S / T	220/380	1 & 3	3500	2"x1.25”	333	37	3

Pump Performance Chart :

Model	Power		Inlet/Outlet	Q	M3/H	0	3	6	9	12	15	18	20
Model	KW	HP	Inlet/Outlet	Q	LPM	0	50	100	150	200	250	300	333
PCM50-32-3.0S / T	2.2	3.0	2"x1.25”	Head (meters)		37	35	33.5	32.5	31.5	30	28.5	27
