Application:

• Pressure boiler feeding
• Pure water treating system
• Refining chemical industries
• Hot and cold water circulation
• Washing & sprinkling
• Water supply system

• Max Flow: 20 M3/H
• Max Head: 37 m
• Speed: 2900 rpm
• Power: 2.0 kW / 3.2 HP
• Inlet/Outlet: 2"x1.25"
• Max Suction: Upto 3m
• Voltage: 220-240V (Single Phase)
                    380-420V, 50Hz (Three Phase)
• Max Liquid Temperature: Up to 90°C
• Max Ambient Temperature Up to 40°C
• Insulation Class: F
• Protection Class: IPX4
• Liquid pH Value: 4-10
• Altitude: < 1000m

Installation and use :

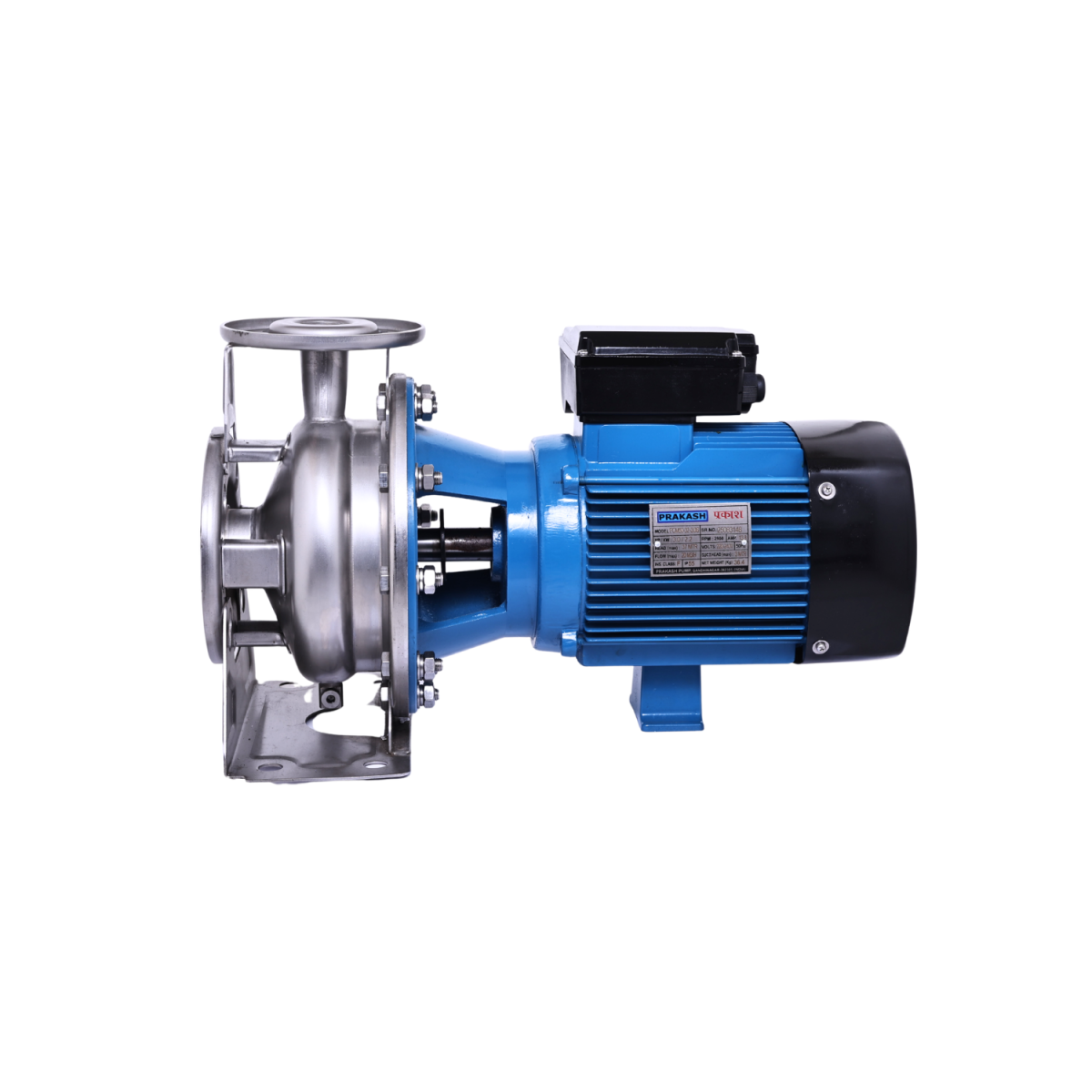

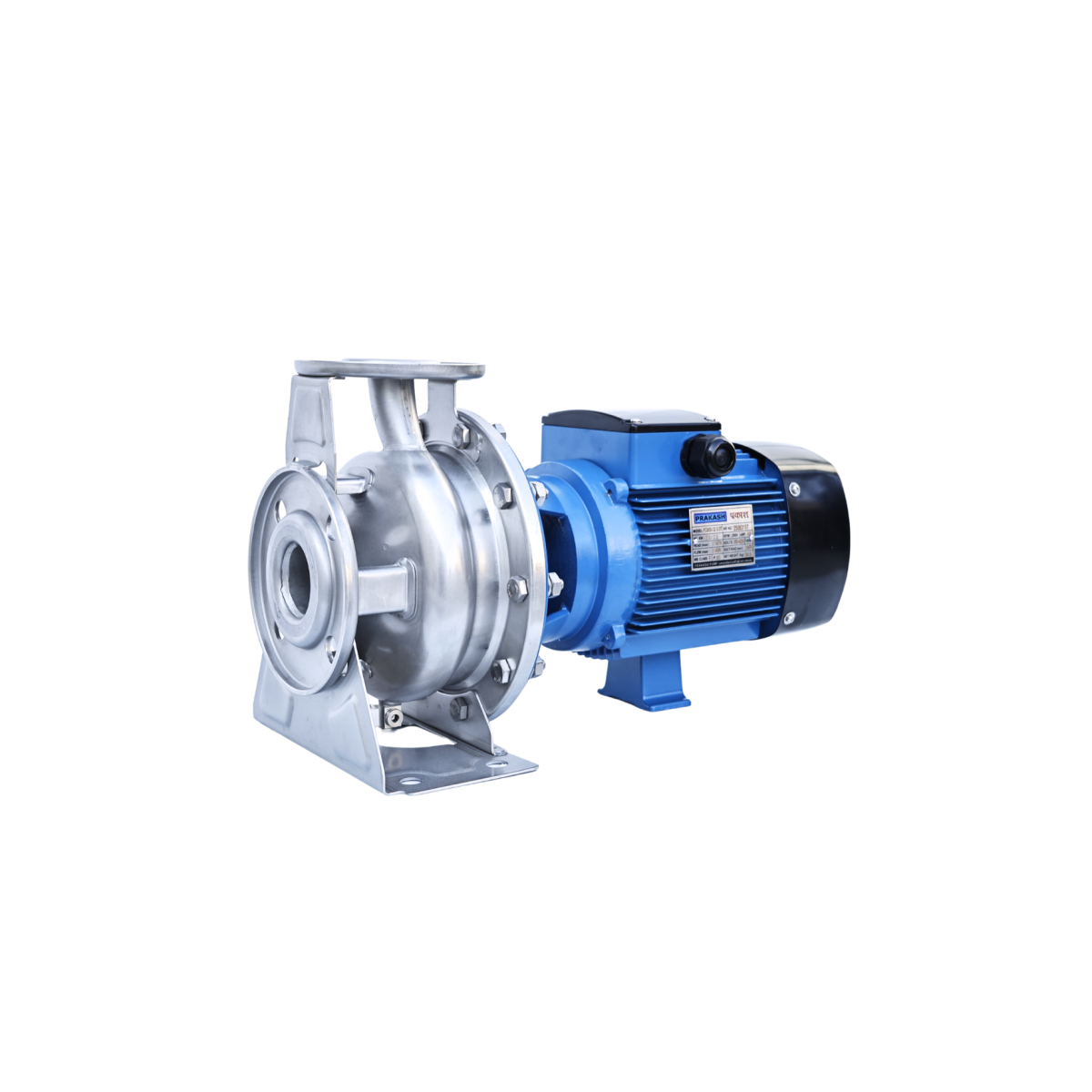

PCM stainless steel is the most advanced series of centrifugal Monoblock stainless steel pumps, with its liquid flow section made entirely of stainless steel 304 & (316 on request), Compliant with DIN24255 standard, it has excellent quality and efficiency to meet the complex application requirements of today's construction services and general industry, the PCM motor is tightly coupled with the water pump, and the impeller is installed on the extension shaft of the motor. PCM is equipped with IP55 weatherproof rating, IEC standard, aluminum frame motor. Starting from 11kW, the motor frame should be made of cast iron. The snail shell is designed as an integrated component.

Pump Performance Chart :
