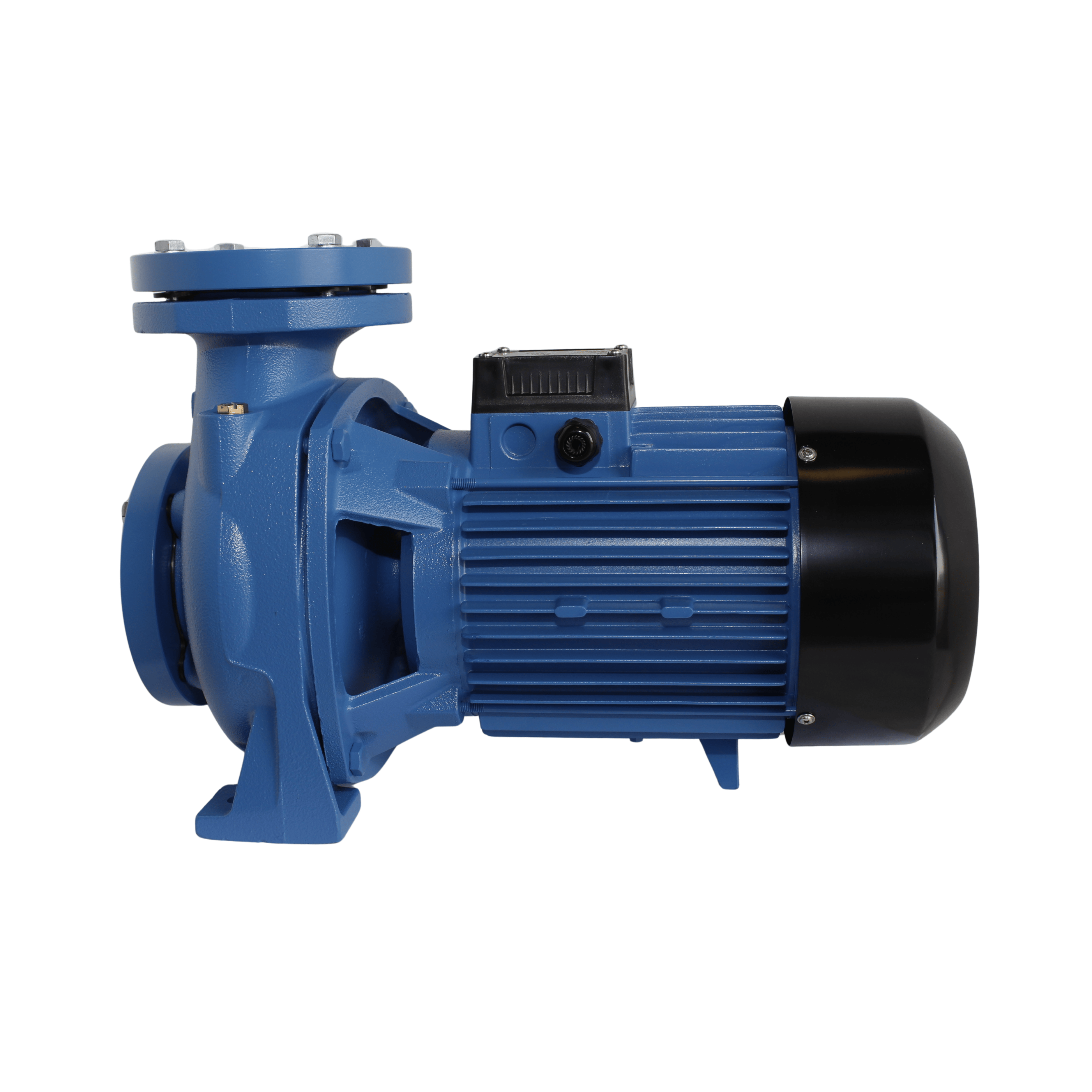

Prakash 3.0 HP Centrifugal Pump PCP30T

  • Prakash 3.0 HP Centrifugal Pump PCP30T
  • Prakash 3.0 HP Centrifugal Pump PCP30T
  • Prakash 3.0 HP Centrifugal Pump PCP30T
  • Prakash 3.0 HP Centrifugal Pump PCP30T

Model : PCP30T

SKU : PCP30T

Flow :1 M3/HR - 72 M3/HR

Head : 6 Meter - 19 Meter

Application:

  • Domestic Water Supply
  • Lawn Sprinkler, villas
  • Automobile Washing
  • Gardens Water Supply
  • Pressure Boosting in Various Fields, small air conditioner system or supporting equipment etc.

Specifications:

  • Max Head : 19 meter
  • Max Flow : 1200 LPM
  • Speed : 2900 rpm
  • Power : 2.2Kw
  • Inlet/Outlet : 3" X 3"
  • Liquid Temperature : up to 90°C
  • Insulation Class : F/B
  • Protection Class : IP54
  • Voltage : 380-420V, 50Hz
  • Max Suction : up to 8m


  • Installation and use :
    Suitable for clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.

    Thanks for it's reliability, the fact that these pumps are easy to use and very economical, these are ideal for domestic and civil use and in particular for distributing water in combination with small and medium pressure sets, irrigation of gardens and allotment. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

     Model

    Power

    Inlet /Outlet

    Q

    M3/H

    0

    6

    12

    18

    24

    30  36  42 48 54  60  66  72

    KW

    HP

    LPM

    0

    100

    200

    300

    400

     500 600 700800900100011001200

    PCP30T

    2.2

    3

    3”x3”

    Head (meters)

    19

    18.5

    18

    17.5

    17

     16  15  14 1311.5   10    8    6
