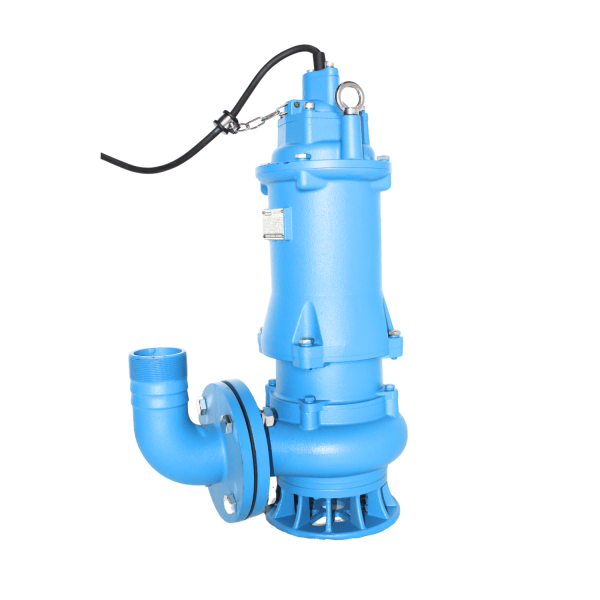

Prakash 4 HP Sewage Pump - PSP40-13-3
Model : PSP40-13-3
SKU : PSP40-13-3
Flow :1 M3/HR - 70 M3/HR
Head : 4 Meter - 21 Meter
Application:
Municipal Projects
Industrial and Residential buildings
Mining
Civil Engineering
Pumping Sewage from domestic, hotel, school, and public buildings
Specifications :
Max Flow: 1167 LPM
Max Head: 21 Meter
Power : 3 KW / 4HP
Speed: 2900 RPM
Water temperature: Up to 40˚C
pH: 6.5 - 8.5
Ambient temperature: up to 40˚C
Insulation Class: F
Protection Class: IP 68
Duty: S1
Voltage : 380-420V, 50Hz
Feature & Benefits :
Non-clogging double vane impeller can pump a large solid cove full range of heads.
Chrome-plated shaft ensures high corrosion resistance and wear resistance.
Designed for pumping sewage, wastewater, rainwater, and living water containing solid grains, various fabrics, sludge, and solids.
Installation and Use :
This model of pump is characterized by high heads, compact size, light weight, and convenient use, and is widely used in high-position water delivery, flushing, and places as construction sites. The float switch can automatically turn on and off with the change of the water level. The protection in the motor can automatically cut off the power when it overheats or overcurrent.
|
Model |
Power |
Outlet |
Q |
M3/H |
0 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
|
|
KW |
HP |
LPM |
0 |
83 |
167 |
250 |
333 |
417 |
500 |
583 |
667 |
750 |
834 |
917 |
1000 |
1084 |
1167 |
|||
|
PSP40-13-3 |
3 |
4 |
3" |
Head (m) |
21 |
20 |
18.5 |
17 |
15.5 |
14 |
13 |
12 |
11 |
10 |
9 |
8 |
7 |
5.5 |
4 |
|
