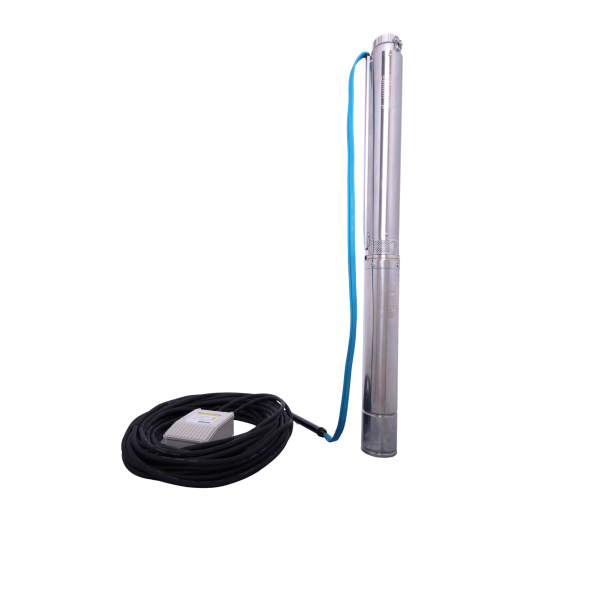

Model : PMP-M

SKU : PMP-M

Flow :1 LPM - 200 LPM

Head : 14 Meter - 82 Meter

Application

• Ground water supply to waterworks
• Irrigation in horticulture and agriculture
• Ground water lowering
• Pressure boosting
• Water treatment
• Fire fighting application
• Civil and industrial application


Specification :

• Power : 1.1 Kw - 2.2 Kw / 1.5 HP - 3 HP
• Voltage : 220-240V, 50Hz
• Max Flow : up to 200LPM
• Head : up to 82m
• Speed : 2900 RPM
• Water temperature : up to 35°C
• Minimum internal diameter of well : 4” Ø100mm.
• The solids in the water is less than 0.02% (heavy proportion)
• PH: 6.5 – 8.0
• Motor Pumpset with cable and starter




  Installation and use :

  • Pump sizes for connecting to motor according to NEMA standards.
  • Manufactured From corrosion resistant materials for long life impellers, diffuser, and check valve are thermoelastic for corrosion-resistance.
  • Specific impeller material selection ensures optimal performance in sandy bores.
  • This type models feature independently floating centrifugal impellers to provide easy starting and long life automatically adjusting to match pumping conditions for various application.
  • Heavy duty stainless steel Inner and outer shell providing protection and accurate alignment of internal components.
  • High quality shaft bearings providing low friction and high wear resistance.
  • Strong stainless steel drive shaft ensures positive impeller drive and longer life.




  Motor Pumpset Model	KW	HP	Outlet (inch)	H (mm)	L (mm)	Net Weight (Kg)		Q	M3H	0	3.0	4.8	5.4	6.0	7.2	8.4	9.6	10.8	12.0
  						H	L		LPM	0	50	80	90	100	120	140	160	180	200
  PMP-M1.5-68	1.1	1.5	2”	364	806	3.2	14.2	H  Meters		38	36	35	34	33	31	28	24	19	14
  PMP-M2-810	1.5	2		426	898	3.7	16.1			52	50	47	45.5	44	41	37	31	25	18
  PMP-M3-1315	2.2	3		581	1098	4.9	19.7			82	78	75	73	71	66	59	50	40	30
