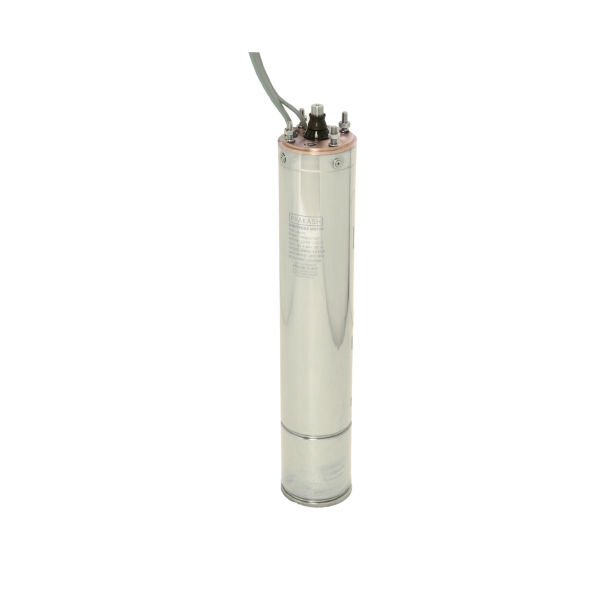

Prakash 4" Submersible Motor Pumpset PSM
Model : PSM
SKU : PSM
Flow :0 LPM - 0 LPM
Head : 0 Meter - 0 Meter
Application :
- Domestic water supply to waterworks
- Irrigation in horticulture and agriculture
- Drip and sprinkler irrigation
- Pressure boosting application
- Water treatment
- Civil and industrial applications
Specification :
- Power: 0.75 kW - 2.2 kW (Single phase)
2.2kW - 4.0 kW (Three phase) - Voltage : 220-240V, 50Hz
380-415V, 50Hz - Speed: 2850 RPM
- Water temperature: up to 45°C
- Minimum internal diameter of well: 4” Ø100mm.
- PH: 6.5 – 8.0
- Protection class: IP68
Installation and use :
- Pump sizes for connecting to the motor according to NEMA standards.
- Manufactured from corrosion-resistant materials for long-life impellers, diffusers, and check valves are thermoelastic for corrosion resistance.
- Specific impeller material selection ensures optimal performance in sandy bores.
- These type of models features independently floating centrifugal impellers to provide easy starting and long life, automatically adjusting to match pumping conditions for various applications.
- Heavy-duty stainless steel Inner and outer shell providing protection and accurate alignment of internal components.
- High-quality shaft bearings provide low friction and high wear resistance.
- Strong stainless steel drive shaft ensures positive impeller drive and longer life.
MODEL
MOTOR POWER
VOLT (50Hz)
AXIAL LOAD (N)
METHOD OF START
L(mm)
NET WEIGHT
(Kg)kW
HP
PSM1.0-100S
0.75
1.0
220-240V
1500
CR
372
9
PSM1.5-100S
1.1
1.5
220-240V
2500
CR
442
11
PSM2.0-100S
1.5
2.0
220-240V
2500
CR
472
12.4
PSM3.0-100S
2.2
3.0
220-240V
2500
CR
517
14.8
PSM3.0-100T
2.2
3.0
380-420V
2500
D.O.L
502
13.8
PSM4.0-100T
3.0
4.0
380-420V
4500
D.O.L
552
16.6
PSM5.5-100T
4.0
5.5
380-420V
4500
D.O.L
602
19
*For more information, download the Catalog
