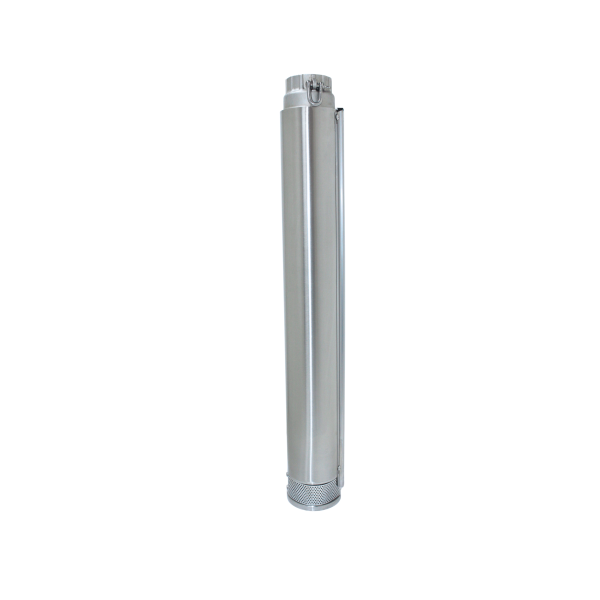

Model : SSFP24

SKU : SSFP24

Flow :1 LPM - 400 LPM

Head : 9 Meter - 122 Meter

Application

• Ground water supply to waterworks
• Irrigation in horticulture and agriculture
• Ground water lowering
• Pressure boosting
• Water treatment
• Fire fighting application
• Civil and industrial application


Specification :

• Power : 2.2 Kw - 5.5 Kw / 3 HP - 7.5 HP
• Max Flow : up to 400LPM
• Head : up to 122m
• Speed : 2900 RPM
• Water temperature : up to 35°C
• Minimum internal diameter of well : 4” Ø100mm.
• The solids in the water is less than 0.02% (heavy proportion)
• PH: 6.5 – 8.0



  Installation and use :

  • Pump sizes for connecting to motor according to NEMA standards.
  • Manufactured From corrosion resistant materials for long life impellers, diffuser, and check valve are thermoelastic for corrosion-resistance.
  • Specific impeller material selection ensures optimal performance in sandy bores.
  • This type models feature independently floating centrifugal impellers to provide easy starting and long life automatically adjusting to match pumping conditions for various application.
  • Heavy duty stainless steel Inner and outer shell providing protection and accurate alignment of internal components.
  • High quality shaft bearings providing low friction and high wear resistance.
  • Strong stainless steel drive shaft ensures positive impeller drive and longer life.



  Bore       Pump     Model	KW	HP	Outlet (inch)	H (mm)	L (mm)	Net Weight (Kg)		Q	M3H	0	9.6	12	13.2	14.4	15.6	18	19.2	21.6	22
  						H	L		LPM	0	160	200	220	240	260	300	320	360	400
  SSFP24-2.2-8	2.2	3	2"	716	1195	5.3	21.4	H  Meters		49	38	34	32	30	28	23	20	15	9
  SSFP24-3-11	3	4		880	1435	7.2	24.7			67	53	48	45	42	39	33	30	23	16
  SSFP24-4-15	4	5.5		1189	1753	8.8	29.6			93	73	66	62	59	55	47	43	34	25
  SSFP24-5.5-20	5.5	7.5	2"	1565	2273	11.9	41.7			122	95	86	81	76	72	61	56	44	32
