Applications:

• Irrigation in horticulture and agriculture
• Drip and sprinkler irrigation
• Pressure boosting application
• Water treatment
• Civil and industrial application
• Domestic water supply

Specifications:

• Water temperature: Up to 45°C
• Minimum internal diameter of well: 5” Ø125mm.
• Power: 4.0 Kw to 7.5 kW  (5.5 HP to 10 HP)
• Power Supply: Three-phase 220V/380V ±10%, 60 Hz.
• Insulation Class: B
• Protection Class: IP 68
• Max No. of starts per hour: 25
• Speed: 3450 RPM
• Standard motor with poly wrapping insulated winding
• Ambient temp. of 30°C with a min. Cooling flow: 4.0Kw -7.5kw, V=0.2m/s
• Installation position: Vertical/Horizontal
• Duty: S1

Product Feature:

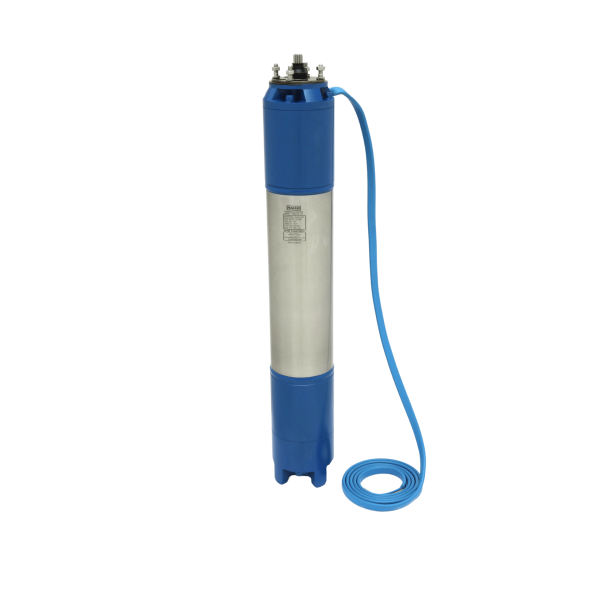

• Specially designed 5" motor for 4" NEMA extension.
• Easily rewindable (wet wound) induction motor with PVC/ Poly wrapping insulated winding.
• Water lubricated radial and thrust bearing, and high capacity Kingsbury type thrust bearing for 100%.
• Corrosion-resistant stainless steel stator jacket.
• Non-contaminating water filling design.
• High efficiency electrical design for low operation cost.
• Tropical zed design. (Lower winding temperature)
• Cable material according to the drinking water regulation.
• All motors are prefilled and 100% tested.
• Sand slinger for high performance in sand.



  MODEL	MOTOR    POWER		Volts	STARTING     CURRENT        (A)	FULL LOAD		Max Full Load (A)	MAX. DOWN        THRUST LOAD (N)	TORQUE (Nm)	STARTING TORQUE (Nm)
  	KW	HP			Eff.%	Power Factor
  PSMC125-      5.5	4.0	5.5	220	89	78	0.78	19.7	10000	12.7	13.5
  PSMC125-      5.5	4.0	5.5	380	54	77	0.63	12	10000	12.6	13.4
  PSMC125-      7.5	5.5	7.5	220	116	81	0.79	15.8	10000	17.3	21.6
  PSMC125-      7.5	5.5	7.5	380	68	80	0.80	15	10000	17.3	21.6
  PSMC125-      10	7.5	10	220	149	80	0.85	33.2	10000	23.8	30.3
  PSMC125-      10	7.5	10	380	88	81	0.83	19.5	10000	23.6	30


  *For more information, please download the catalog
