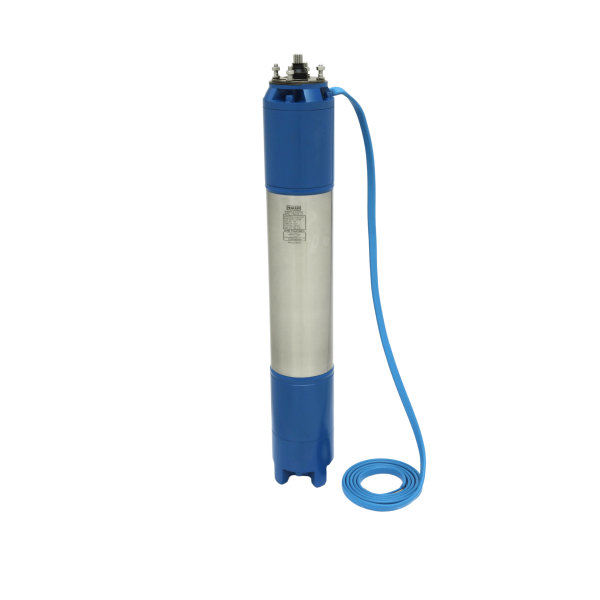

Model : PSMC125

SKU : PSMC125

Flow :0 M3/HR - 0 M3/HR

Head : 0 Meter - 0 Meter

Applications:

• Irrigation in horticulture and agriculture
• Drip and sprinkler irrigation
• Pressure boosting application
• Water treatment
• Civil and industrial application
• Domestic water supply



Specifications:

• Water temperature : Up to 45°C
• Minimum internal diameter of well: 5” Ø125mm.
• Power : 4Kw to 7.5Kw  (5.5 HP to 10 HP)
• Power Supply: Three phase 380V-415V ±10%, 50 Hz.
• Insulation Class: F
• Protection Class : IP 68
• Max No. of starts per hour: 25
• Speed: 2800 RPM
• Standard motor with poly wrapping insulated winding
• Ambient temp. of 30°C with a min. Cooling flow: 4.0Kw -7.5kw, V=0.2m/s
• Installation position : Vertical/Horizontal
• Duty: S1

Product Feature:

• Specially designed 5" motor for 4" NEMA extension.
• Easily rewindable (wet wound) induction motor with PVC/ Poly wrapping insulated winding.
• Water lubricated radial and thrust bearing and high capacity Kingsbury type thrust bearing for 100%.
• Corrosion resistance stainless steel stator jacket.
• Non-contaminating water filling design.
• High efficiency electrical design for low operation cost.
• Tropical zed design. (Lower winding temperature)
• Cable material according to drinking water regulation.
• All motors prefilled and 100% tested.
• Sand slinger for high performance in sand.

  Technical Data :  380V-415V, 50 Hz, 2850 RPM



  MODEL	MOTOR POWER		MAX. FULL LOAD (A)	STARTING CURRENT (A)	Full load		METHOD OF START	MAX.     DOWN THRUST LOAD(N)	TORQUE (Nm)	STARTING TORQUE (Nm)
  	KW	HP			Eff. %	Power Factor
  PSMC125-5.5	4.0	5.5	10	43	69	0.7	D.O.L	10000	7	15
  PSMC125-7.5	5.5	7.5	14	58	74	0.7	D.O.L	10000	10	22
  PSMC125-10	7.5	10	18.5	78	75	0.7	D.O.L	10000	14	32
