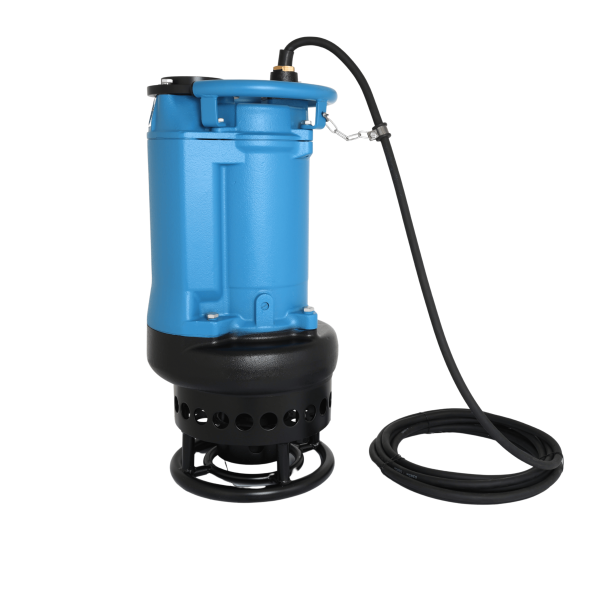

Prakash 5.5 HP Submersible Slurry Pump PSSP4-3
Frequency : 60Hz
Model : PSSP4-3
SKU : PSSP4-3
Flow :0 LPM - 1667 LPM
Head : 3 Meter - 15 Meter
Application:
Civil engineering
Mines, quarries, coal ore & slurries
Sewage treatment plants
General pumping purposes
Pumping fluid: sludge, liquid-containing mud, and bentonite
Specification:
Max Head: 15 meters
Max Flow: 1667 LPM
Power: 4 KW / 5.5Hp
Speed: 1750 RPM
Power supply: Three-phase 380V-420V, 60Hz
Insulation class: F
Protection class: IP68
Water temperature: up to 40°C
Output: 3"
Installation and Use :
Submersible slurry pump with a 4-pole motor for an increased lifetime and greater convenience.
A High-chrome alloy impeller combined with an agitator for pumping heavy slurry.
Slim design with a top discharge enabling installation in a smaller casing.
For bentonite mixed with water in foundation works or muddy water in civil engineering works.
Model | Power | Outlet | Q | M3/H | 0 | 20 | 40 | 60 | 80 | 100 | |
KW | HP | LPM | 0 | 333 | 667 | 1000 | 1334 | 1667 | |||
PSSP4.0-3 | 4.0 | 5.5 | 3” | Head (meters) | 15 | 14 | 12 | 10 | 7 | 3 | |
