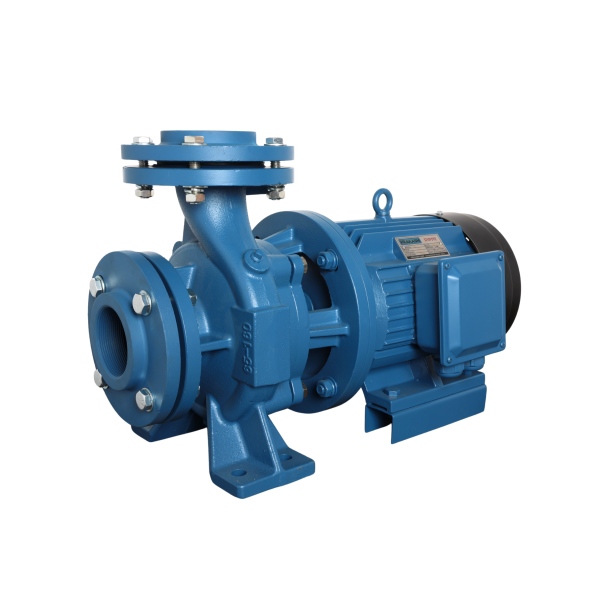

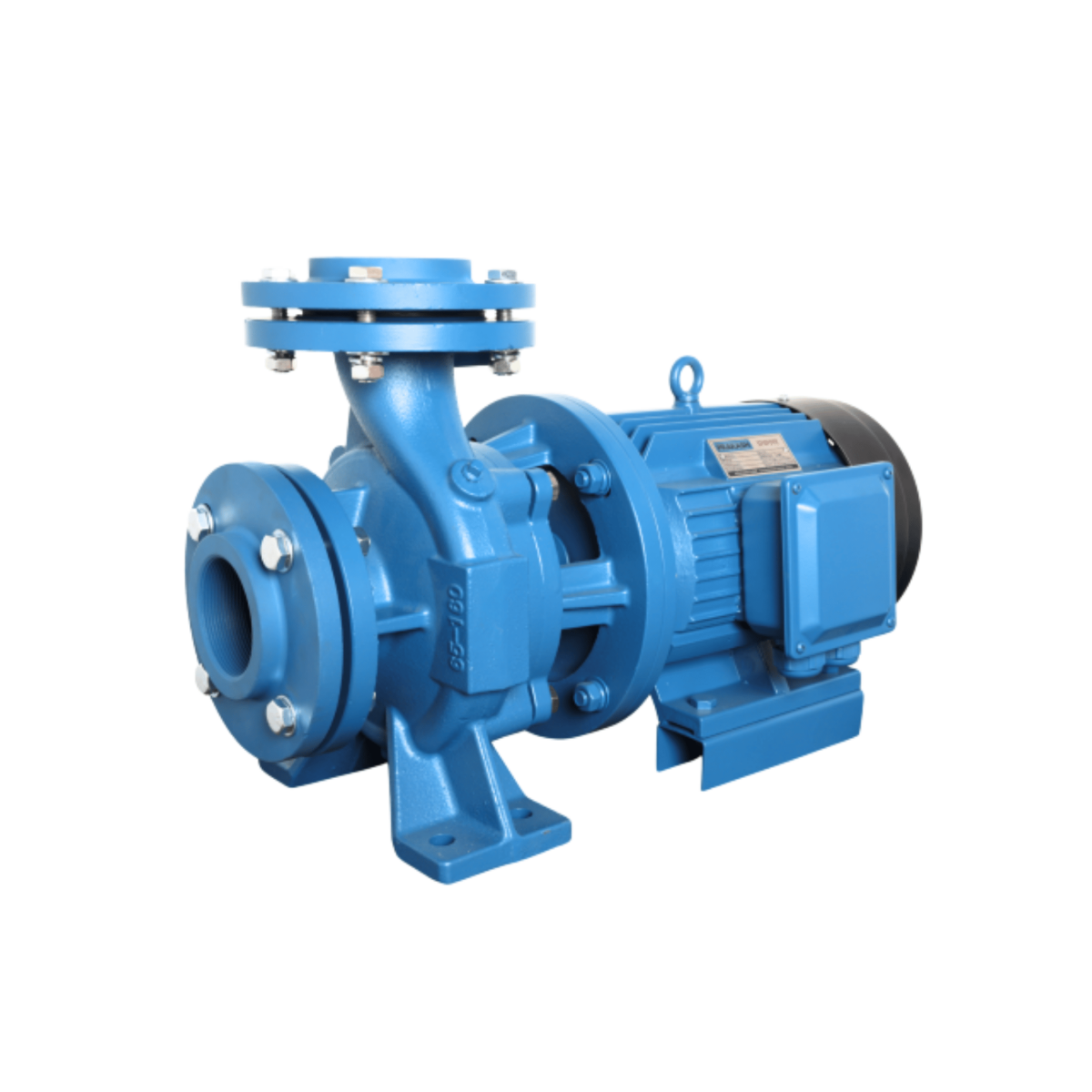

Prakash 5.5 HP Centrifugal Monoblock Pump PCM-5.5
Frequency : 60Hz
Model : PCM-5.5
SKU : PCM-5.5
Flow :0 LPM - 667 LPM
Head : 2 Meter - 32 Meter
Application:
- Civil Engineering
- Mines, quarries, coal ore, and slurries
- Sewage treatment plants
- General pumping purposes
- Max Flow: 667 LPM
- Max Head: 32 m
- Speed: 3500 rpm
- Power: 4.0 kW / 5.5 HP
- Inlet/Outlet: 2.5"x2.5"
- Max Liquid Temperature: Up to 105°C
- Max Ambient Temperature Up to 40°C
- Insulation Class: F
- Protection class: IPX4 / IP54
- pH: 6-8
Pump Selection Chart :
|
|
|
|
| Max Flow | Max Head (m) | Max Suction |
|
|
|
|
|
|
|
|
Pump Performance Chart :
| Power |
|
| M3/H | 0 | 10 | 20 | 30 | 40 | |
KW | HP | LPM | 0 | 167 | 333 | 500 | 667 | |||
PCM-5.5 | 4.0 | 5.5 | 2.5"x2.5” | Head (meters) | 32 | 30 | 27 | 19 | 2 | |
